Data Storage Modules 0.40.0Last updated in version 0.38.1

Database backup

View Source Release Notes

This module, along with the lambda-share-snapshot and lambda-copy-shared-snapshot modules, can be used to backup your RDS database to another AWS account (e.g., for disaster recovery) on a configurable schedule. Under the hood, each module runs a Lambda function that instructs your database to take a snapshot (this module), share the snapshot with another account (the lambda-share-snapshot module), and make a copy of the snapshot (lambda-copy-shared-snapshot).

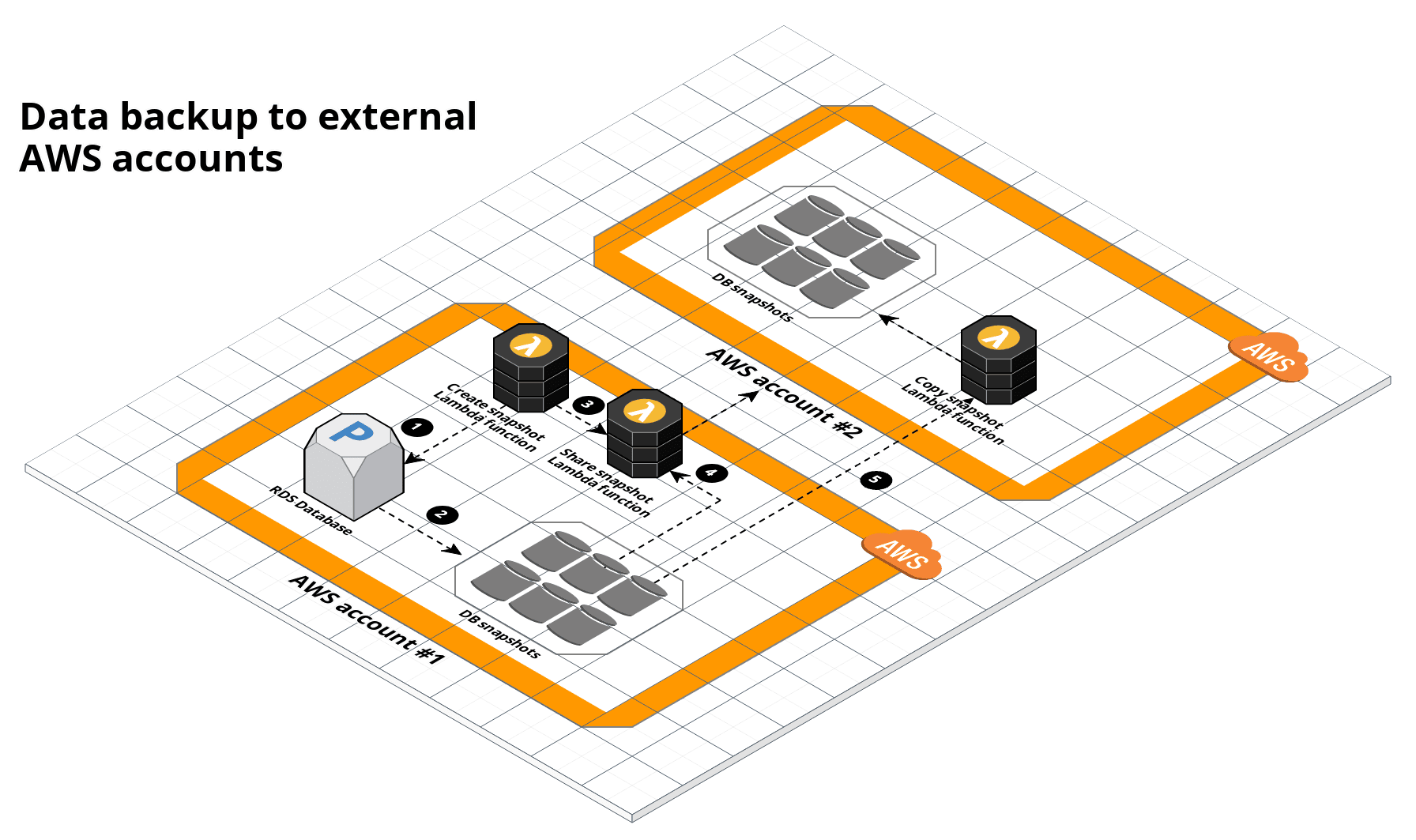

RDS architectureRDS architecture

Features​

  • Standalone functions for taking snapshots, sharing snapshots, and copying snapshots that can be combined in many different ways

  • You can combine them to copy snapshots across AWS accounts and regions

  • Configurable backup schedule (e.g., using cron expressions)

  • Clean up old snapshots automatically using the lambda-cleanup-snapshots module.

  • Add tags to snapshots by passing in additional_environment_variables

Learn​

Note

This repo is a part of the Gruntwork Infrastructure as Code Library, a collection of reusable, battle-tested, production ready infrastructure code. If you’ve never used the Infrastructure as Code Library before, make sure to read How to use the Gruntwork Infrastructure as Code Library!

Core concepts​

Deploy​

Non-production deployment (quick start for learning)​

If you just want to try this repo out for experimenting and learning, check out the following resources:

  • examples folder: The examples folder contains sample code optimized for learning, experimenting, and testing (but not production usage).

Production deployment​

If you want to deploy this repo in production, check out the following resources:

Manage​

Day-to-day operations​

Major changes​

Sample Usage​

main.tf

# ------------------------------------------------------------------------------------------------------
# DEPLOY GRUNTWORK'S LAMBDA-CREATE-SNAPSHOT MODULE
# ------------------------------------------------------------------------------------------------------

module "lambda_create_snapshot" {

  source = "git::git@github.com:gruntwork-io/terraform-aws-data-storage.git//modules/lambda-create-snapshot?ref=v0.40.0"

  # ----------------------------------------------------------------------------------------------------
  # REQUIRED VARIABLES
  # ----------------------------------------------------------------------------------------------------

  # The ARN of the RDS database
  rds_db_arn = <string>

  # The identifier of the RDS database
  rds_db_identifier = <string>

  # If set to true, this RDS database is an Amazon Aurora cluster. If set to
  # false, it's running some other database, such as MySQL, Postgres, Oracle,
  # etc.
  rds_db_is_aurora_cluster = <bool>

  # An expression that defines how often to run the lambda function to take
  # snapshots. For example, cron(0 20 * * ? *) or rate(5 minutes).
  schedule_expression = <string>

  # ----------------------------------------------------------------------------------------------------
  # OPTIONAL VARIABLES
  # ----------------------------------------------------------------------------------------------------

  # A map of additional environment variables to pass to the Lambda function.
  # Any additional environment variables prefixed with TAG_ will be added as
  # tags to the RDS snapshot.
  additional_environment_variables = {}

  # Set to false to have this module skip creating resources. This weird
  # parameter exists solely because Terraform does not support conditional
  # modules. Therefore, this is a hack to allow you to conditionally decide if
  # this module should create anything or not.
  create_resources = true

  # Namespace all Lambda resources created by this module with this name. If not
  # specified, the default is var.rds_db_identifier with '-create-snapshot' as a
  # suffix.
  lambda_namespace = null

  # If the DB is not in available state when this function runs, it will retry
  # up to max_retries times.
  max_retries = 60

  # If set true, just before the lambda function finishes running, it will
  # report a custom metric to CloudWatch, as specified by
  # var.report_cloudwatch_metric_namespace and
  # var.report_cloudwatch_metric_name. You can set an alarm on this metric to
  # detect if the backup job failed to run to completion.
  report_cloudwatch_metric = false

  # The name to use for the the custom CloudWatch metric. Only used if
  # var.report_cloudwatch_metric is set to true.
  report_cloudwatch_metric_name = null

  # The namespace to use for the the custom CloudWatch metric. Only used if
  # var.report_cloudwatch_metric is set to true.
  report_cloudwatch_metric_namespace = null

  # Namespace all Lambda scheduling resources created by this module with this
  # name. If not specified, the default is var.lambda_namespace with
  # '-scheduled' as a suffix.
  schedule_namespace = null

  # The ARN of a lambda job to trigger to share the DB snapshot with another AWS
  # account. Only used if var.share_snapshot_with_another_account is set to
  # true.
  share_snapshot_lambda_arn = null

  # The ID of an AWS account with which to share the RDS snapshot. Only used if
  # var.share_snapshot_with_another_account is set to true.
  share_snapshot_with_account_id = null

  # If set to true, after this lambda function takes a snapshot of the RDS DB,
  # it will trigger the lambda function specified in
  # var.share_snapshot_lambda_arn to share the snapshot with another AWS
  # account.
  share_snapshot_with_another_account = false

  # The amount of time, in seconds, between retries.
  sleep_between_retries_sec = 60

  # Namespace all snapshots created by this module's jobs with this suffix. If
  # not specified, only the database identifier and timestamp are used.
  snapshot_namespace = ""

}


Reference​

Required​

rds_db_arnstringrequired

The ARN of the RDS database

rds_db_identifierstringrequired

The identifier of the RDS database

If set to true, this RDS database is an Amazon Aurora cluster. If set to false, it's running some other database, such as MySQL, Postgres, Oracle, etc.

schedule_expressionstringrequired

An expression that defines how often to run the lambda function to take snapshots. For example, cron(0 20 * * ? *) or rate(5 minutes).

Optional​

A map of additional environment variables to pass to the Lambda function. Any additional environment variables prefixed with TAG_ will be added as tags to the RDS snapshot.

{}
create_resourcesbooloptional

Set to false to have this module skip creating resources. This weird parameter exists solely because Terraform does not support conditional modules. Therefore, this is a hack to allow you to conditionally decide if this module should create anything or not.

true
lambda_namespacestringoptional

Namespace all Lambda resources created by this module with this name. If not specified, the default is rds_db_identifier with '-create-snapshot' as a suffix.

null
max_retriesnumberoptional

If the DB is not in available state when this function runs, it will retry up to max_retries times.

60

If set true, just before the lambda function finishes running, it will report a custom metric to CloudWatch, as specified by report_cloudwatch_metric_namespace and report_cloudwatch_metric_name. You can set an alarm on this metric to detect if the backup job failed to run to completion.

false

The name to use for the the custom CloudWatch metric. Only used if report_cloudwatch_metric is set to true.

null

The namespace to use for the the custom CloudWatch metric. Only used if report_cloudwatch_metric is set to true.

null
schedule_namespacestringoptional

Namespace all Lambda scheduling resources created by this module with this name. If not specified, the default is lambda_namespace with '-scheduled' as a suffix.

null

The ARN of a lambda job to trigger to share the DB snapshot with another AWS account. Only used if share_snapshot_with_another_account is set to true.

null

The ID of an AWS account with which to share the RDS snapshot. Only used if share_snapshot_with_another_account is set to true.

null

If set to true, after this lambda function takes a snapshot of the RDS DB, it will trigger the lambda function specified in share_snapshot_lambda_arn to share the snapshot with another AWS account.

false

The amount of time, in seconds, between retries.

60
snapshot_namespacestringoptional

Namespace all snapshots created by this module's jobs with this suffix. If not specified, only the database identifier and timestamp are used.

""
