Security Modules 0.71.0Last updated in version 0.69.2

AWS CloudTrail

View SourceRelease Notes

This Terraform Module configures AWS CloudTrail, a service for logging every API call made against your AWS account.

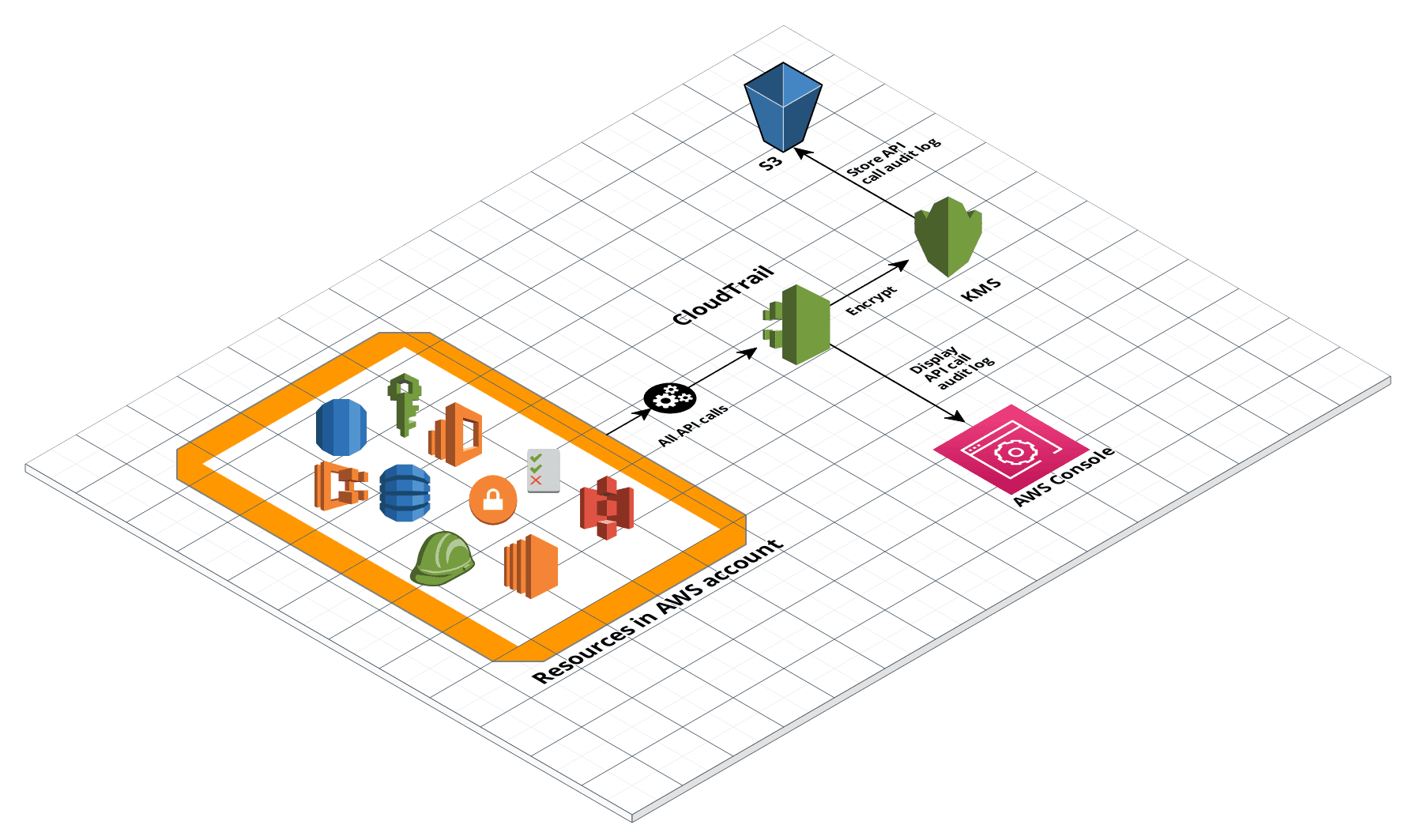

AWS CloudTrail ArchitectureAWS CloudTrail Architecture

Features

  • Enable CloudTrail in your AWS account.

  • Create an S3 bucket to store all CloudTrail events.

  • Create a KMS master key to encrypt all CloudTrail events.

  • Configure how long to retain CloudTrail log data and how to guarantee CloudTrail log integrity.

Learn

Note

This repo is a part of the Gruntwork Infrastructure as Code Library, a collection of reusable, battle-tested, production ready infrastructure code. If you’ve never used the Infrastructure as Code Library before, make sure to read How to use the Gruntwork Infrastructure as Code Library!

Core concepts

Repo organization

  • modules: the main implementation code for this repo, broken down into multiple standalone, orthogonal submodules.

  • examples: This folder contains working examples of how to use the submodules.

  • test: Automated tests for the modules and examples.

Deploy

Non-production deployment (quick start for learning)

If you just want to try this repo out for experimenting and learning, check out the following resources:

  • examples/cloudtrail: The examples/cloudtrail folder contains sample code optimized for learning, experimenting, and testing (but not production usage).

Production deployment

If you want to deploy this repo in production, check out the following resources:

Manage

Day-to-day operations

Major changes

Sample Usage

main.tf

# ------------------------------------------------------------------------------------------------------
# DEPLOY GRUNTWORK'S CLOUDTRAIL MODULE
# ------------------------------------------------------------------------------------------------------

module "cloudtrail" {

source = "git::git@github.com:gruntwork-io/terraform-aws-security.git//modules/cloudtrail?ref=v0.71.0"

# ----------------------------------------------------------------------------------------------------
# REQUIRED VARIABLES
# ----------------------------------------------------------------------------------------------------

# If true, an IAM Policy that grants access to CloudTrail will be honored. If
# false, only the ARNs listed in var.kms_key_user_iam_arns will have access to
# CloudTrail and any IAM Policy grants will be ignored. (true or false)
allow_cloudtrail_access_with_iam = <bool>

# The name of the S3 Bucket where CloudTrail logs will be stored.
s3_bucket_name = <string>

# ----------------------------------------------------------------------------------------------------
# OPTIONAL VARIABLES
# ----------------------------------------------------------------------------------------------------

# The S3 bucket where access logs for this bucket should be stored. Only used
# if access_logging_enabled is true.
access_logging_bucket = null

# A prefix (i.e., folder path) to use for all access logs stored in
# access_logging_bucket. Only used if access_logging_enabled is true.
access_logging_prefix = null

# Additional IAM policies to apply to the Cloudtrail S3 bucket. You can use
# this to grant read/write access beyond what is provided to Cloudtrail. This
# should be a map, where each key is a unique statement ID (SID), and each
# value is an object that contains the parameters defined in the comment
# below.
additional_bucket_policy_statements = null

# Map of advanced event selector name to list of field selectors to apply for
# that event selector. Advanced event selectors allow for more fine grained
# data logging of events.

Note that you can not configure basic data logging
# (var.data_logging_enabled) if advanced event logging is enabled.

Refer to
# the AWS docs on data event selection for more details on the difference
# between basic data logging and advanced data logging.
advanced_event_selectors = {}

# Whether or not to allow kms:DescribeKey to external AWS accounts with write
# access to the bucket. This is useful during deployment so that you don't
# have to pass around the KMS key ARN.
allow_kms_describe_key_to_external_aws_accounts = false

# Optional whether or not to use Amazon S3 Bucket Keys for SSE-KMS.
bucket_key_enabled = false

# If defined, uses this value as the name of the CloudTrail IAM role. If not
# defined, and cloudwatch_logs_group_name is defined, uses that name for the
# role. If cloudwatch_logs_group_name is not defined, this resource is not
# created.
cloudtrail_iam_role_name = null

# The ARN of the policy that is used to set the permissions boundary for the
# IAM role.
cloudtrail_iam_role_permissions_boundary = null

# The name to assign to the CloudTrail 'trail' that will be used to track all
# API calls in your AWS account.
cloudtrail_trail_name = "full-account"

# If defined, creates a CloudWatch Logs group with the specified name and
# configures the trail to publish logs to the group. If undefined, cloudwatch
# logs group is not created.
cloudwatch_logs_group_name = null

# Set to false to have this module skip creating resources. This weird
# parameter exists solely because Terraform does not support conditional
# modules. Therefore, this is a hack to allow you to conditionally decide if
# the resources in this module should be created or not.
create_resources = true

# If true, logging of data events will be enabled.
data_logging_enabled = false

# Specify if you want your event selector to include management events for
# your trail.
data_logging_include_management_events = true

# Specify if you want your trail to log read-only events, write-only events,
# or all. Possible values are: ReadOnly, WriteOnly, All.
data_logging_read_write_type = "All"

# Data resources for which to log data events. This should be a map, where
# each key is a data resource type, and each value is a list of data resource
# values. Possible values for data resource types are: AWS::S3::Object,
# AWS::Lambda::Function and AWS::DynamoDB::Table. See the 'data_resource'
# block within the 'event_selector' block of the 'aws_cloudtrail' resource for
# context:
# https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/cloudtrail#data_resource.
data_logging_resources = {}

# Create a dependency between the resources in this module to the interpolated
# values in this list (and thus the source resources). In other words, the
# resources in this module will now depend on the resources backing the values
# in this list such that those resources need to be created before the
# resources in this module, and the resources in this module need to be
# destroyed before the resources in the list.
dependencies = []

# Enables logging for the trail. Setting this to false will pause logging.
# (true or false)
enable_cloudtrail = true

# Whether or not to enable automatic annual rotation of the KMS key. Defaults
# to true.
enable_key_rotation = true

# Enables S3 server access logging which sends detailed records for the
# requests that are made to the bucket. Defaults to false.
enable_s3_server_access_logging = false

# A list of external AWS accounts that should be given write access for
# CloudTrail logs to this S3 bucket. This is useful when aggregating
# CloudTrail logs for multiple AWS accounts in one common S3 bucket.
external_aws_account_ids_with_write_access = []

# If set to true, when you run 'terraform destroy', delete all objects from
# the bucket so that the bucket can be destroyed without error. Warning: these
# objects are not recoverable so only use this if you're absolutely sure you
# want to permanently delete everything!
force_destroy = false

# Type of insights to log on a trail. Valid values are: ApiCallRateInsight and
# ApiErrorRateInsight.
insight_selector = []

# Specifies whether CloudTrail will log only API calls in the current region
# or in all regions. (true or false)
is_multi_region_trail = true

# Specifies whether the trail is an AWS Organizations trail. Organization
# trails log events for the root account and all member accounts. Can only be
# created in the organization root account. (true or false)
is_organization_trail = false

# All CloudTrail Logs will be encrypted with a KMS Key (a Customer Master Key)
# that governs access to write API calls older than 7 days and all read API
# calls. The IAM Users specified in this list will have rights to change who
# can access this extended log data. This is optional if
# allow_cloudtrail_access_with_iam is true, otherwise it is required.
kms_key_administrator_iam_arns = []

# If set to true, that means the KMS key you're using already exists, and does
# not need to be created.
kms_key_already_exists = false

# If you wish to specify a custom KMS key, then specify the key arn using this
# variable. This is especially useful when using CloudTrail with multiple AWS
# accounts, so the logs are all encrypted using the same key.
kms_key_arn = null

# If the kms_key_arn provided is an alias or alias ARN, then this must be set
# to true so that the module will exchange the alias for a CMK ARN. Setting
# this to true and using aliases requires
# var.allow_kms_describe_key_to_external_aws_accounts to also be true for
# multi-account scenarios.
kms_key_arn_is_alias = false

# The number of days to keep this KMS Key (a Customer Master Key) around after
# it has been marked for deletion.
kms_key_deletion_window_in_days = 15

# Additional service principals beyond CloudTrail that should have access to
# the KMS key used to encrypt the logs. This is useful for granting access to
# the logs for the purposes of constructing metric filters.
kms_key_service_principals = []

# All CloudTrail Logs will be encrypted with a KMS Key (a Customer Master Key)
# that governs access to write API calls older than 7 days and all read API
# calls. The IAM Users specified in this list will have read-only access to
# this extended log data.
kms_key_user_iam_arns = []

# After this number of days, log files should be transitioned from S3 to
# Glacier. Enter 0 to never archive log data.
num_days_after_which_archive_log_data = 30

# After this number of days, log files should be deleted from S3. If null,
# never delete.
num_days_after_which_delete_log_data = null

# After this number of days, logs stored in CloudWatch will be deleted.
# Possible values are: 1, 3, 5, 7, 14, 30, 60, 90, 120, 150, 180, 365, 400,
# 545, 731, 1827, 3653, and 0 (default). When set to 0, logs will be retained
# indefinitely.
num_days_to_retain_cloudwatch_logs = 0

# The ID of the organization. Required only if an organization wide CloudTrail
# is being setup. In such a case, this ensures that the entire organization is
# whitelisted in the CloudTrail bucket write policy.
organization_id = null

# Set to true to enable replication for this bucket. You can set the role to
# use for replication using the replication_role parameter and the rules for
# replication using the replication_rules parameter.
replication_enabled = false

# The ARN of the IAM role for Amazon S3 to assume when replicating objects.
# Only used if replication_enabled is set to true.
replication_role = null

# The rules for managing replication. Only used if replication_enabled is set
# to true. This should be a map, where the key is a unique ID for each
# replication rule and the value is an object of the form explained in a
# comment above.
replication_rules = {}

# If set to true, that means the S3 bucket you're using already exists, and
# does not need to be created. This is especially useful when using CloudTrail
# with multiple AWS accounts, with a common S3 bucket shared by all of them.
s3_bucket_already_exists = false

# Enable MFA delete for either 'Change the versioning state of your bucket' or
# 'Permanently delete an object version'. This setting only applies to the
# bucket used to storage Cloudtrail data. This cannot be used to toggle this
# setting but is available to allow managed buckets to reflect the state in
# AWS. For instructions on how to enable MFA Delete, check out the README from
# the private-s3-bucket module. CIS v1.4 requires this variable to be true. If
# you do not wish to be CIS-compliant, you can set it to false.
s3_mfa_delete = false

# SNS topic for S3 log delivery notifications.
sns_delivery_topic = null

# A map of tags to apply to the S3 Bucket, CloudTrail KMS Key, and CloudTrail
# itself. The key is the tag name and the value is the tag value.
tags = {}

# When true, all IAM policies will be managed as dedicated policies rather
# than inline policies attached to the IAM roles. Dedicated managed policies
# are friendlier to automated policy checkers, which may scan a single
# resource for findings. As such, it is important to avoid inline policies
# when targeting compliance with various security standards.
use_managed_iam_policies = true

}


Reference

Required

If true, an IAM Policy that grants access to CloudTrail will be honored. If false, only the ARNs listed in kms_key_user_iam_arns will have access to CloudTrail and any IAM Policy grants will be ignored. (true or false)

s3_bucket_namestringrequired

The name of the S3 Bucket where CloudTrail logs will be stored.

Optional

access_logging_bucketstringoptional

The S3 bucket where access logs for this bucket should be stored. Only used if access_logging_enabled is true.

null
access_logging_prefixstringoptional

A prefix (i.e., folder path) to use for all access logs stored in access_logging_bucket. Only used if access_logging_enabled is true.

null

Additional IAM policies to apply to the Cloudtrail S3 bucket. You can use this to grant read/write access beyond what is provided to Cloudtrail. This should be a map, where each key is a unique statement ID (SID), and each value is an object that contains the parameters defined in the comment below.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
null
Example
   {
AllIamUsersReadAccess = {
effect = "Allow"
actions = ["s3:GetObject"]
principals = {
AWS = ["arn:aws:iam::111111111111:user/ann", "arn:aws:iam::111111111111:user/bob"]
}
condition = {
SourceVPCCheck = {
test = "StringEquals"
variable = "aws:SourceVpc"
values = ["vpc-abcd123"]
}
}
}
}

Details

See the 'statement' block in the aws_iam_policy_document data
source for context: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/data-sources/iam_policy_document

- effect string (optional): Either "Allow" or "Deny", to specify whether this statement allows or denies the given actions.
- actions list(string) (optional): A list of actions that this statement either allows or denies. For example, ["s3:GetObject", "s3:PutObject"].
- not_actions list(string) (optional): A list of actions that this statement does NOT apply to. Used to apply a policy statement to all actions except those listed.
- principals map(list(string)) (optional): The principals to which this statement applies. The keys are the principal type ("AWS", "Service", or "Federated") and the value is a list of identifiers.
- not_principals map(list(string)) (optional): The principals to which this statement does NOT apply. The keys are the principal type ("AWS", "Service", or "Federated") and the value is a list of identifiers.
- keys list(string) (optional): A list of keys within the bucket to which this policy applies. For example, ["", "/*"] would apply to (a) the bucket itself and (b) all keys within the bucket. The default is [""].
- condition map(object) (optional): A nested configuration block (described below) that defines a further, possibly-service-specific condition that constrains whether this statement applies.

condition is a map from a unique ID for the condition to an object that can define the following properties:

- test string (required): The name of the IAM condition operator to evaluate.
- variable string (required): The name of a Context Variable to apply the condition to. Context variables may either be standard AWS variables starting with aws:, or service-specific variables prefixed with the service name.
- values list(string) (required): The values to evaluate the condition against. If multiple values are provided, the condition matches if at least one of them applies. (That is, the tests are combined with the "OR" boolean operation.)

Details

Ideally, this would be a map(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas IAM policy statements have many optional params. And we can't even use map(any), as the
Terraform map type constraint requires all values to have the same type ("shape"), but as each object in the map
may specify different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

Map of advanced event selector name to list of field selectors to apply for that event selector. Advanced event selectors allow for more fine grained data logging of events.

Note that you can not configure basic data logging (data_logging_enabled) if advanced event logging is enabled.

Refer to the AWS docs on data event selection for more details on the difference between basic data logging and advanced data logging.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}
Details

Ideally, we will use a more strict type here but since we want to support required and optional values, and since
Terraform's type system only supports maps that have the same type for all values, we have to use the less useful
`any` type.

Details

Each entry in the map is a list of field selector objects, each of which supports the following attributes:

REQUIRED
- field string : Specifies a field in an event record on which to filter events to be logged. You
can specify only the following values: readOnly, eventSource, eventName,
eventCategory, resources.type, resources.ARN.
OPTIONAL (one of the following must be set)
- equals list(string) : A list of values that includes events that match the exact value of the event
record field specified as the value of field. This is the only valid operator
that you can use with the readOnly, eventCategory, and resources.type fields.
- not_equals list(string) : A list of values that excludes events that match the exact value of the event
record field specified as the value of field.
- starts_with list(string) : A list of values that includes events that match the first few characters of the
event record field specified as the value of field.
- not_starts_with list(string) : A list of values that excludes events that match the first few characters of the
event record field specified as the value of field.
- ends_with list(string) : A list of values that includes events that match the last few characters of the
event record field specified as the value of field.
- not_ends_with list(string) : A list of values that excludes events that match the last few characters of the
event record field specified as the value of field.

EXAMPLE:
advanced_event_selectors = {
LogDeleteEvents = [
{
field = "eventCategory"
equals = ["Data"]
},
{
field = "eventName"
starts_with = ["Delete"]
},
{
field = "resources.type"
equals = ["AWS::S3::Object"]
},
]
}

Whether or not to allow kms:DescribeKey to external AWS accounts with write access to the bucket. This is useful during deployment so that you don't have to pass around the KMS key ARN.

false
bucket_key_enabledbooloptional

Optional whether or not to use Amazon S3 Bucket Keys for SSE-KMS.

false

If defined, uses this value as the name of the CloudTrail IAM role. If not defined, and cloudwatch_logs_group_name is defined, uses that name for the role. If cloudwatch_logs_group_name is not defined, this resource is not created.

null

The ARN of the policy that is used to set the permissions boundary for the IAM role.

null
cloudtrail_trail_namestringoptional

The name to assign to the CloudTrail 'trail' that will be used to track all API calls in your AWS account.

"full-account"

If defined, creates a CloudWatch Logs group with the specified name and configures the trail to publish logs to the group. If undefined, cloudwatch logs group is not created.

null
create_resourcesbooloptional

Set to false to have this module skip creating resources. This weird parameter exists solely because Terraform does not support conditional modules. Therefore, this is a hack to allow you to conditionally decide if the resources in this module should be created or not.

true

If true, logging of data events will be enabled.

false

Specify if you want your event selector to include management events for your trail.

true

Specify if you want your trail to log read-only events, write-only events, or all. Possible values are: ReadOnly, WriteOnly, All.

"All"
data_logging_resourcesmap(list(…))optional

Data resources for which to log data events. This should be a map, where each key is a data resource type, and each value is a list of data resource values. Possible values for data resource types are: AWS::S3::Object, AWS::Lambda::Function and AWS::DynamoDB::Table. See the 'data_resource' block within the 'event_selector' block of the 'aws_cloudtrail' resource for context: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/cloudtrail#data_resource.

map(list(string))
{}
dependencieslist(string)optional

Create a dependency between the resources in this module to the interpolated values in this list (and thus the source resources). In other words, the resources in this module will now depend on the resources backing the values in this list such that those resources need to be created before the resources in this module, and the resources in this module need to be destroyed before the resources in the list.

[]
enable_cloudtrailbooloptional

Enables logging for the trail. Setting this to false will pause logging. (true or false)

true

Whether or not to enable automatic annual rotation of the KMS key. Defaults to true.

true

Enables S3 server access logging which sends detailed records for the requests that are made to the bucket. Defaults to false.

false

A list of external AWS accounts that should be given write access for CloudTrail logs to this S3 bucket. This is useful when aggregating CloudTrail logs for multiple AWS accounts in one common S3 bucket.

[]
force_destroybooloptional

If set to true, when you run 'terraform destroy', delete all objects from the bucket so that the bucket can be destroyed without error. Warning: these objects are not recoverable so only use this if you're absolutely sure you want to permanently delete everything!

false
insight_selectorlist(string)optional

Type of insights to log on a trail. Valid values are: ApiCallRateInsight and ApiErrorRateInsight.

[]

Specifies whether CloudTrail will log only API calls in the current region or in all regions. (true or false)

true

Specifies whether the trail is an AWS Organizations trail. Organization trails log events for the root account and all member accounts. Can only be created in the organization root account. (true or false)

false
kms_key_administrator_iam_arnslist(string)optional

All CloudTrail Logs will be encrypted with a KMS Key (a Customer Master Key) that governs access to write API calls older than 7 days and all read API calls. The IAM Users specified in this list will have rights to change who can access this extended log data. This is optional if allow_cloudtrail_access_with_iam is true, otherwise it is required.

[]

If set to true, that means the KMS key you're using already exists, and does not need to be created.

false
kms_key_arnstringoptional

If you wish to specify a custom KMS key, then specify the key arn using this variable. This is especially useful when using CloudTrail with multiple AWS accounts, so the logs are all encrypted using the same key.

null

If the kms_key_arn provided is an alias or alias ARN, then this must be set to true so that the module will exchange the alias for a CMK ARN. Setting this to true and using aliases requires allow_kms_describe_key_to_external_aws_accounts to also be true for multi-account scenarios.

false

The number of days to keep this KMS Key (a Customer Master Key) around after it has been marked for deletion.

15
kms_key_service_principalslist(object(…))optional

Additional service principals beyond CloudTrail that should have access to the KMS key used to encrypt the logs. This is useful for granting access to the logs for the purposes of constructing metric filters.

list(object({
# The name of the service principal (e.g.: s3.amazonaws.com).
name = string

# The list of actions that the given service principal is allowed to perform (e.g. ["kms:DescribeKey",
# "kms:GenerateDataKey"]).
actions = list(string)

# List of conditions to apply to the permissions for the service principal. Use this to apply conditions on the
# permissions for accessing the KMS key (e.g., only allow access for certain encryption contexts).
conditions = list(object({
# Name of the IAM condition operator to evaluate.
test = string

# Name of a Context Variable to apply the condition to. Context variables may either be standard AWS variables
# starting with aws: or service-specific variables prefixed with the service name.
variable = string

# Values to evaluate the condition against. If multiple values are provided, the condition matches if at least one
# of them applies. That is, AWS evaluates multiple values as though using an "OR" boolean operation.
values = list(string)
}))
}))
[]
Details

The list of actions that the given service principal is allowed to perform (e.g. ["kms:DescribeKey",
"kms:GenerateDataKey"]).

Details

List of conditions to apply to the permissions for the service principal. Use this to apply conditions on the
permissions for accessing the KMS key (e.g., only allow access for certain encryption contexts).

Details

Name of a Context Variable to apply the condition to. Context variables may either be standard AWS variables
starting with aws: or service-specific variables prefixed with the service name.

Details

Values to evaluate the condition against. If multiple values are provided, the condition matches if at least one
of them applies. That is, AWS evaluates multiple values as though using an "OR" boolean operation.

kms_key_user_iam_arnslist(string)optional

All CloudTrail Logs will be encrypted with a KMS Key (a Customer Master Key) that governs access to write API calls older than 7 days and all read API calls. The IAM Users specified in this list will have read-only access to this extended log data.

[]

After this number of days, log files should be transitioned from S3 to Glacier. Enter 0 to never archive log data.

30

After this number of days, log files should be deleted from S3. If null, never delete.

null

After this number of days, logs stored in CloudWatch will be deleted. Possible values are: 1, 3, 5, 7, 14, 30, 60, 90, 120, 150, 180, 365, 400, 545, 731, 1827, 3653, and 0 (default). When set to 0, logs will be retained indefinitely.

0
organization_idstringoptional

The ID of the organization. Required only if an organization wide CloudTrail is being setup. In such a case, this ensures that the entire organization is whitelisted in the CloudTrail bucket write policy.

null

Set to true to enable replication for this bucket. You can set the role to use for replication using the replication_role parameter and the rules for replication using the replication_rules parameter.

false
replication_rolestringoptional

The ARN of the IAM role for Amazon S3 to assume when replicating objects. Only used if replication_enabled is set to true.

null

The rules for managing replication. Only used if replication_enabled is set to true. This should be a map, where the key is a unique ID for each replication rule and the value is an object of the form explained in a comment above.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}
Example
   {
ExampleConfig = {
prefix = "config/"
status = "Enabled"
destination_bucket = "arn:aws:s3:::my-destination-bucket"
destination_storage_class = "STANDARD"
}
}

Details

Ideally, this would be a list(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas replication rules have many optional params. And we can't even use list(any), as the Terraform
list type constraint requires all values to have the same type ("shape"), but as each object in the list may specify
different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

If set to true, that means the S3 bucket you're using already exists, and does not need to be created. This is especially useful when using CloudTrail with multiple AWS accounts, with a common S3 bucket shared by all of them.

false
s3_mfa_deletebooloptional

Enable MFA delete for either 'Change the versioning state of your bucket' or 'Permanently delete an object version'. This setting only applies to the bucket used to storage Cloudtrail data. This cannot be used to toggle this setting but is available to allow managed buckets to reflect the state in AWS. For instructions on how to enable MFA Delete, check out the README from the private-s3-bucket module. CIS v1.4 requires this variable to be true. If you do not wish to be CIS-compliant, you can set it to false.

false
sns_delivery_topicstringoptional

SNS topic for S3 log delivery notifications.

null
tagsmap(string)optional

A map of tags to apply to the S3 Bucket, CloudTrail KMS Key, and CloudTrail itself. The key is the tag name and the value is the tag value.

{}

When true, all IAM policies will be managed as dedicated policies rather than inline policies attached to the IAM roles. Dedicated managed policies are friendlier to automated policy checkers, which may scan a single resource for findings. As such, it is important to avoid inline policies when targeting compliance with various security standards.

true
