S3 Bucket

View SourceRelease Notes

Overview

This service contains code to deploy an S3 bucket on AWS.

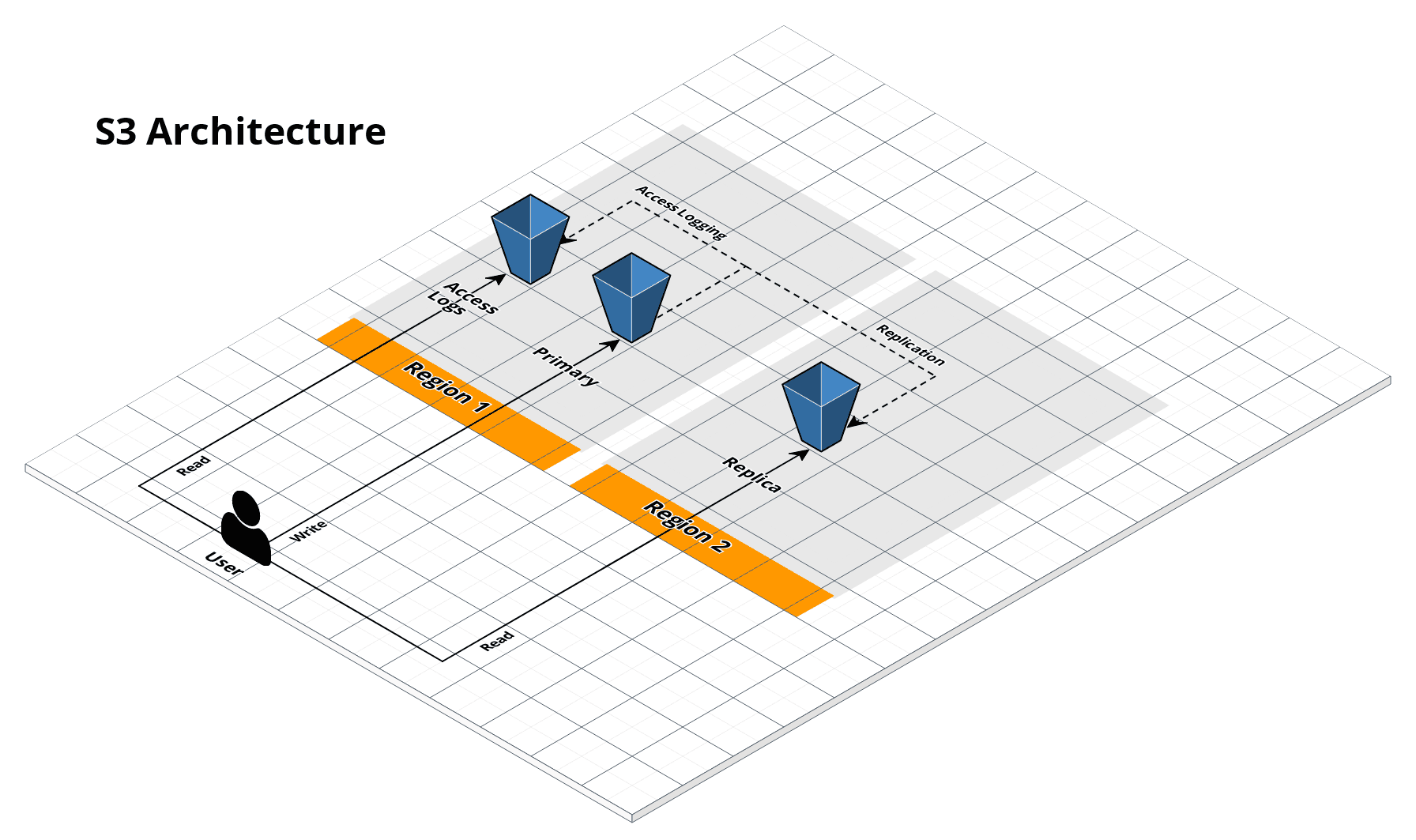

S3 bucket architectureS3 bucket architecture

Features

  • Deploy a private, secure S3 bucket
  • Configure access logging to another S3 bucket
  • Configure object versioning
  • Configure cross-region replication

Learn

note

This repo is a part of the Gruntwork Service Catalog, a collection of reusable, battle-tested, production ready infrastructure code. If you’ve never used the Service Catalog before, make sure to read How to use the Gruntwork Service Catalog!

Deploy

Non-production deployment (quick start for learning)

If you just want to try this repo out for experimenting and learning, check out the following resources:

  • examples/for-learning-and-testing folder: The examples/for-learning-and-testing folder contains standalone sample code optimized for learning, experimenting, and testing (but not direct production usage).

Production deployment

If you want to deploy this repo in production, check out the following resources:

Sample Usage

main.tf

# ------------------------------------------------------------------------------------------------------
# DEPLOY GRUNTWORK'S S3-BUCKET MODULE
# ------------------------------------------------------------------------------------------------------

module "s_3_bucket" {

source = "git::git@github.com:gruntwork-io/terraform-aws-service-catalog.git//modules/data-stores/s3-bucket?ref=v0.108.7"

# ----------------------------------------------------------------------------------------------------
# REQUIRED VARIABLES
# ----------------------------------------------------------------------------------------------------

# What to name the S3 bucket. Note that S3 bucket names must be globally
# unique across all AWS users!
primary_bucket = <string>

# ----------------------------------------------------------------------------------------------------
# OPTIONAL VARIABLES
# ----------------------------------------------------------------------------------------------------

# The S3 bucket where access logs for this bucket should be stored. Set to
# null to disable access logging.
access_logging_bucket = null

# The lifecycle rules for the access logs bucket. See var.lifecycle_rules for
# details.
access_logging_bucket_lifecycle_rules = {}

# Configure who will be the default owner of objects uploaded to the access
# logs S3 bucket: must be one of BucketOwnerPreferred (the bucket owner owns
# objects), ObjectWriter (the writer of each object owns that object). Note
# that this setting only takes effect if the object is uploaded with the
# bucket-owner-full-control canned ACL. See
# https://docs.aws.amazon.com/AmazonS3/latest/dev/about-object-ownership.html
# for more info.
access_logging_bucket_ownership = "ObjectWriter"

# The IAM policy to apply to the S3 bucket used to store access logs. You can
# use this to grant read/write access. This should be a map, where each key is
# a unique statement ID (SID), and each value is an object that contains the
# parameters defined in the comment above.
access_logging_bucket_policy_statements = {}

# A prefix (i.e., folder path) to use for all access logs stored in
# access_logging_bucket. Only used if access_logging_bucket is specified.
access_logging_prefix = null

# The canned ACL to apply. See comment above for the list of possible ACLs. If
# not `null` bucket_ownership cannot be BucketOwnerEnforced
acl = null

# Optional whether or not to use Amazon S3 Bucket Keys for SSE-KMS.
bucket_key_enabled = false

# Optional KMS key to use for encrypting data in the S3 bucket. If null, data
# in S3 will be encrypted using the default aws/s3 key. If provided, the key
# policy of the provided key must allow whoever is writing to this bucket to
# use that key.
bucket_kms_key_arn = null

# Configure who will be the default owner of objects uploaded to this S3
# bucket: must be one of BucketOwnerPreferred (the bucket owner owns objects),
# ObjectWriter (the writer of each object owns that object). Note that this
# setting only takes effect if the object is uploaded with the
# bucket-owner-full-control canned ACL. See
# https://docs.aws.amazon.com/AmazonS3/latest/dev/about-object-ownership.html
# for more info.
bucket_ownership = "ObjectWriter"

# The IAM policy to apply to this S3 bucket. You can use this to grant
# read/write access. This should be a map, where each key is a unique
# statement ID (SID), and each value is an object that contains the parameters
# defined in the comment above.
bucket_policy_statements = {}

# The server-side encryption algorithm to use on the bucket. Valid values are
# AES256 and aws:kms. To disable server-side encryption, set var.enable_sse to
# false.
bucket_sse_algorithm = "aws:kms"

# CORS rules to set on this S3 bucket
cors_rules = []

# Set to true to enable server-side encryption for this bucket. You can
# control the algorithm using var.sse_algorithm.
enable_sse = true

# Set to true to enable versioning for this bucket. If enabled, instead of
# overriding objects, the S3 bucket will always create a new version of each
# object, so all the old values are retained.
enable_versioning = true

# If set to true, when you run 'terraform destroy', delete all objects from
# the logs bucket so that the bucket can be destroyed without error. Warning:
# these objects are not recoverable so only use this if you're absolutely sure
# you want to permanently delete everything!
force_destroy_logs = false

# If set to true, when you run 'terraform destroy', delete all objects from
# the primary bucket so that the bucket can be destroyed without error.
# Warning: these objects are not recoverable so only use this if you're
# absolutely sure you want to permanently delete everything!
force_destroy_primary = false

# If set to true, when you run 'terraform destroy', delete all objects from
# the replica bucket so that the bucket can be destroyed without error.
# Warning: these objects are not recoverable so only use this if you're
# absolutely sure you want to permanently delete everything!
force_destroy_replica = false

# The lifecycle rules for this S3 bucket. These can be used to change storage
# types or delete objects based on customizable rules. This should be a map,
# where each key is a unique ID for the lifecycle rule, and each value is an
# object that contains the parameters defined in the comment above.
lifecycle_rules = {}

# Enable MFA delete for either 'Change the versioning state of your bucket' or
# 'Permanently delete an object version'. This cannot be used to toggle this
# setting but is available to allow managed buckets to reflect the state in
# AWS. Only used if enable_versioning is true. For instructions on how to
# enable MFA Delete, check out the README from the
# terraform-aws-security/private-s3-bucket module.
mfa_delete = false

# The number of days that you want to specify for the default retention period
# for Object Locking. Only one of object_lock_days or object_lock_years can be
# configured. Only used if object_lock_enabled and
# object_lock_default_retention_enabled are true.
object_lock_days = null

# Set to true to configure a default retention period for object locks when
# Object Locking is enabled. When disabled, objects will not be protected with
# locking by default unless explicitly configured at object creation time.
# Only used if object_lock_enabled is true.
object_lock_default_retention_enabled = true

# Set to true to enable Object Locking. This prevents objects from being
# deleted for a customizable period of time. Note that this MUST be configured
# at bucket creation time - you cannot update an existing bucket to enable
# object locking unless you go through AWS support. Additionally, this is not
# reversible - once a bucket is created with object lock enabled, you cannot
# disable object locking even with this setting. Note that enabling object
# locking will automatically enable bucket versioning.
object_lock_enabled = false

# The default Object Lock retention mode you want to apply to new objects
# placed in this bucket. Valid values are GOVERNANCE and COMPLIANCE. Only used
# if object_lock_enabled and object_lock_default_retention_enabled are true.
object_lock_mode = null

# The number of years that you want to specify for the default retention
# period for Object Locking. Only one of object_lock_days or object_lock_years
# can be configured. Only used if object_lock_enabled and
# object_lock_default_retention_enabled are true.
object_lock_years = null

# The S3 bucket that will be the replica of this bucket. Set to null to
# disable replication.
replica_bucket = null

# The canned ACL to apply. See comment above for the list of possible ACLs. If
# not `null` bucket_ownership cannot be BucketOwnerEnforced
replica_bucket_acl = null

# If set to true, replica bucket will be expected to already exist.
replica_bucket_already_exists = false

# Optional whether or not to use Amazon S3 Bucket Keys for SSE-KMS for the
# replica bucket.
replica_bucket_key_enabled = false

# The lifecycle rules for the replica bucket. See var.lifecycle_rules for
# details.
replica_bucket_lifecycle_rules = {}

# Configure who will be the default owner of objects uploaded to the replica
# S3 bucket: must be one of BucketOwnerPreferred (the bucket owner owns
# objects), ObjectWriter (the writer of each object owns that object). Note
# that this setting only takes effect if the object is uploaded with the
# bucket-owner-full-control canned ACL. See
# https://docs.aws.amazon.com/AmazonS3/latest/dev/about-object-ownership.html
# for more info.
replica_bucket_ownership = "ObjectWriter"

# The IAM policy to apply to the replica S3 bucket. You can use this to grant
# read/write access. This should be a map, where each key is a unique
# statement ID (SID), and each value is an object that contains the parameters
# defined in the comment above.
replica_bucket_policy_statements = {}

# Set to true to enable server-side encryption for the replica bucket. You can
# control the algorithm using var.replica_sse_algorithm.
replica_enable_sse = true

# The AWS region for the replica bucket.
replica_region = null

# The server-side encryption algorithm to use on the replica bucket. Valid
# values are AES256 and aws:kms. To disable server-side encryption, set
# var.replica_enable_sse to false.
replica_sse_algorithm = "aws:kms"

# The ARN of the IAM role for Amazon S3 to assume when replicating objects.
# Only used if replication_bucket is specified.
replication_role = null

# The rules for managing replication. Only used if replication_bucket is
# specified. This should be a map, where the key is a unique ID for each
# replication rule and the value is an object of the form explained in a
# comment above.
replication_rules = {}

# A map of tags to apply to the S3 Bucket. These tags will also be applied to
# the access logging and replica buckets (if any). The key is the tag name and
# the value is the tag value.
tags = {}

}


Reference

Required

primary_bucketstringrequired

What to name the S3 bucket. Note that S3 bucket names must be globally unique across all AWS users!

Optional

access_logging_bucketstringoptional

The S3 bucket where access logs for this bucket should be stored. Set to null to disable access logging.

null

The lifecycle rules for the access logs bucket. See lifecycle_rules for details.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}

Configure who will be the default owner of objects uploaded to the access logs S3 bucket: must be one of BucketOwnerPreferred (the bucket owner owns objects), ObjectWriter (the writer of each object owns that object). Note that this setting only takes effect if the object is uploaded with the bucket-owner-full-control canned ACL. See https://docs.aws.amazon.com/AmazonS3/latest/dev/about-object-ownership.html for more info.

"ObjectWriter"

The IAM policy to apply to the S3 bucket used to store access logs. You can use this to grant read/write access. This should be a map, where each key is a unique statement ID (SID), and each value is an object that contains the parameters defined in the comment above.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}
Example
   {
AllIamUsersReadAccess = {
effect = "Allow"
actions = ["s3:GetObject"]
principals = {
AWS = ["arn:aws:iam::111111111111:user/ann", "arn:aws:iam::111111111111:user/bob"]
}
}
}

Details

Ideally, this would be a map(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas IAM policy statements have many optional params. And we can't even use map(any), as the
Terraform map type constraint requires all values to have the same type ("shape"), but as each object in the map
may specify different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

access_logging_prefixstringoptional

A prefix (i.e., folder path) to use for all access logs stored in access_logging_bucket. Only used if access_logging_bucket is specified.

null
aclstringoptional

The canned ACL to apply. See comment above for the list of possible ACLs. If not null bucket_ownership cannot be BucketOwnerEnforced

null
bucket_key_enabledbooloptional

Optional whether or not to use Amazon S3 Bucket Keys for SSE-KMS.

false
bucket_kms_key_arnstringoptional

Optional KMS key to use for encrypting data in the S3 bucket. If null, data in S3 will be encrypted using the default aws/s3 key. If provided, the key policy of the provided key must allow whoever is writing to this bucket to use that key.

null
bucket_ownershipstringoptional

Configure who will be the default owner of objects uploaded to this S3 bucket: must be one of BucketOwnerPreferred (the bucket owner owns objects), ObjectWriter (the writer of each object owns that object). Note that this setting only takes effect if the object is uploaded with the bucket-owner-full-control canned ACL. See https://docs.aws.amazon.com/AmazonS3/latest/dev/about-object-ownership.html for more info.

"ObjectWriter"

The IAM policy to apply to this S3 bucket. You can use this to grant read/write access. This should be a map, where each key is a unique statement ID (SID), and each value is an object that contains the parameters defined in the comment above.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}
Example
   {
AllIamUsersReadAccess = {
effect = "Allow"
actions = ["s3:GetObject"]
principals = {
AWS = ["arn:aws:iam::111111111111:user/ann", "arn:aws:iam::111111111111:user/bob"]
}
}
}

Details

Ideally, this would be a map(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas IAM policy statements have many optional params. And we can't even use map(any), as the
Terraform map type constraint requires all values to have the same type ("shape"), but as each object in the map
may specify different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

bucket_sse_algorithmstringoptional

The server-side encryption algorithm to use on the bucket. Valid values are AES256 and aws:kms. To disable server-side encryption, set enable_sse to false.

"aws:kms"
cors_rulesanyoptional

CORS rules to set on this S3 bucket

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
[]
Example
   [
{
allowed_origins = ["*"]
allowed_methods = ["GET", "HEAD"]
allowed_headers = ["x-amz-*"]
expose_headers = ["Etag"]
max_age_seconds = 3000
}
]

Details

The objects that can define the following properties:

- allowed_origins list(string) (required): The origins that you want to allow cross-domain requests from.
- allowed_methods list(string) (required): From the set of GET, PUT, POST, DELETE, HEAD
- allowed_headers list(string) (optional): The AllowedHeader element specifies which headers are allowed in a preflight request through the Access-Control-Request-Headers header.
- expose_headers list(string) (optional): Each ExposeHeader element identifies a header in the response that you want customers to be able to access from their applications.
- max_age_seconds number (optional): The MaxAgeSeconds element specifies the time in seconds that your browser can cache the response for a preflight request as identified by the resource, the HTTP method, and the origin.

Details

Ideally, this would be a list(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas replication rules have many optional params. And we can't even use list(any), as the Terraform
list type constraint requires all values to have the same type ("shape"), but as each object in the list may specify
different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

enable_ssebooloptional

Set to true to enable server-side encryption for this bucket. You can control the algorithm using sse_algorithm.

true
enable_versioningbooloptional

Set to true to enable versioning for this bucket. If enabled, instead of overriding objects, the S3 bucket will always create a new version of each object, so all the old values are retained.

true
force_destroy_logsbooloptional

If set to true, when you run 'terraform destroy', delete all objects from the logs bucket so that the bucket can be destroyed without error. Warning: these objects are not recoverable so only use this if you're absolutely sure you want to permanently delete everything!

false

If set to true, when you run 'terraform destroy', delete all objects from the primary bucket so that the bucket can be destroyed without error. Warning: these objects are not recoverable so only use this if you're absolutely sure you want to permanently delete everything!

false

If set to true, when you run 'terraform destroy', delete all objects from the replica bucket so that the bucket can be destroyed without error. Warning: these objects are not recoverable so only use this if you're absolutely sure you want to permanently delete everything!

false
lifecycle_rulesanyoptional

The lifecycle rules for this S3 bucket. These can be used to change storage types or delete objects based on customizable rules. This should be a map, where each key is a unique ID for the lifecycle rule, and each value is an object that contains the parameters defined in the comment above.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}
Details

Ideally, this would be a map(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas lifecycle rules have many optional params. And we can't even use map(any), as the Terraform
map type constraint requires all values to have the same type ("shape"), but as each object in the map may specify
different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

mfa_deletebooloptional

Enable MFA delete for either 'Change the versioning state of your bucket' or 'Permanently delete an object version'. This cannot be used to toggle this setting but is available to allow managed buckets to reflect the state in AWS. Only used if enable_versioning is true. For instructions on how to enable MFA Delete, check out the README from the terraform-aws-security/private-s3-bucket module.

false
object_lock_daysnumberoptional

The number of days that you want to specify for the default retention period for Object Locking. Only one of object_lock_days or object_lock_years can be configured. Only used if object_lock_enabled and object_lock_default_retention_enabled are true.

null

Set to true to configure a default retention period for object locks when Object Locking is enabled. When disabled, objects will not be protected with locking by default unless explicitly configured at object creation time. Only used if object_lock_enabled is true.

true

Set to true to enable Object Locking. This prevents objects from being deleted for a customizable period of time. Note that this MUST be configured at bucket creation time - you cannot update an existing bucket to enable object locking unless you go through AWS support. Additionally, this is not reversible - once a bucket is created with object lock enabled, you cannot disable object locking even with this setting. Note that enabling object locking will automatically enable bucket versioning.

false
object_lock_modestringoptional

The default Object Lock retention mode you want to apply to new objects placed in this bucket. Valid values are GOVERNANCE and COMPLIANCE. Only used if object_lock_enabled and object_lock_default_retention_enabled are true.

null
object_lock_yearsnumberoptional

The number of years that you want to specify for the default retention period for Object Locking. Only one of object_lock_days or object_lock_years can be configured. Only used if object_lock_enabled and object_lock_default_retention_enabled are true.

null
replica_bucketstringoptional

The S3 bucket that will be the replica of this bucket. Set to null to disable replication.

null
replica_bucket_aclstringoptional

The canned ACL to apply. See comment above for the list of possible ACLs. If not null bucket_ownership cannot be BucketOwnerEnforced

null

If set to true, replica bucket will be expected to already exist.

false

Optional whether or not to use Amazon S3 Bucket Keys for SSE-KMS for the replica bucket.

false

The lifecycle rules for the replica bucket. See lifecycle_rules for details.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}

Configure who will be the default owner of objects uploaded to the replica S3 bucket: must be one of BucketOwnerPreferred (the bucket owner owns objects), ObjectWriter (the writer of each object owns that object). Note that this setting only takes effect if the object is uploaded with the bucket-owner-full-control canned ACL. See https://docs.aws.amazon.com/AmazonS3/latest/dev/about-object-ownership.html for more info.

"ObjectWriter"

The IAM policy to apply to the replica S3 bucket. You can use this to grant read/write access. This should be a map, where each key is a unique statement ID (SID), and each value is an object that contains the parameters defined in the comment above.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}
Example
   {
AllIamUsersReadAccess = {
effect = "Allow"
actions = ["s3:GetObject"]
principals = {
AWS = ["arn:aws:iam::111111111111:user/ann", "arn:aws:iam::111111111111:user/bob"]
}
}
}

Details

Ideally, this would be a map(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas IAM policy statements have many optional params. And we can't even use map(any), as the
Terraform map type constraint requires all values to have the same type ("shape"), but as each object in the map
may specify different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

replica_enable_ssebooloptional

Set to true to enable server-side encryption for the replica bucket. You can control the algorithm using replica_sse_algorithm.

true
replica_regionstringoptional

The AWS region for the replica bucket.

null
replica_sse_algorithmstringoptional

The server-side encryption algorithm to use on the replica bucket. Valid values are AES256 and aws:kms. To disable server-side encryption, set replica_enable_sse to false.

"aws:kms"
replication_rolestringoptional

The ARN of the IAM role for Amazon S3 to assume when replicating objects. Only used if replication_bucket is specified.

null

The rules for managing replication. Only used if replication_bucket is specified. This should be a map, where the key is a unique ID for each replication rule and the value is an object of the form explained in a comment above.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{}
Example
   {
ExampleConfig = {
prefix = "config/"
status = "Enabled"
destination_bucket = "arn:aws:s3:::my-destination-bucket"
destination_storage_class = "STANDARD"
}
}

Details

Ideally, this would be a list(object({...})), but the Terraform object type constraint doesn't support optional
parameters, whereas replication rules have many optional params. And we can't even use list(any), as the Terraform
list type constraint requires all values to have the same type ("shape"), but as each object in the list may specify
different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

tagsmap(string)optional

A map of tags to apply to the S3 Bucket. These tags will also be applied to the access logging and replica buckets (if any). The key is the tag name and the value is the tag value.

{}
