Overview​

This service contains code to deploy a Virtual Private Cloud (VPC) on AWS that can be used for either production or non-production workloads.

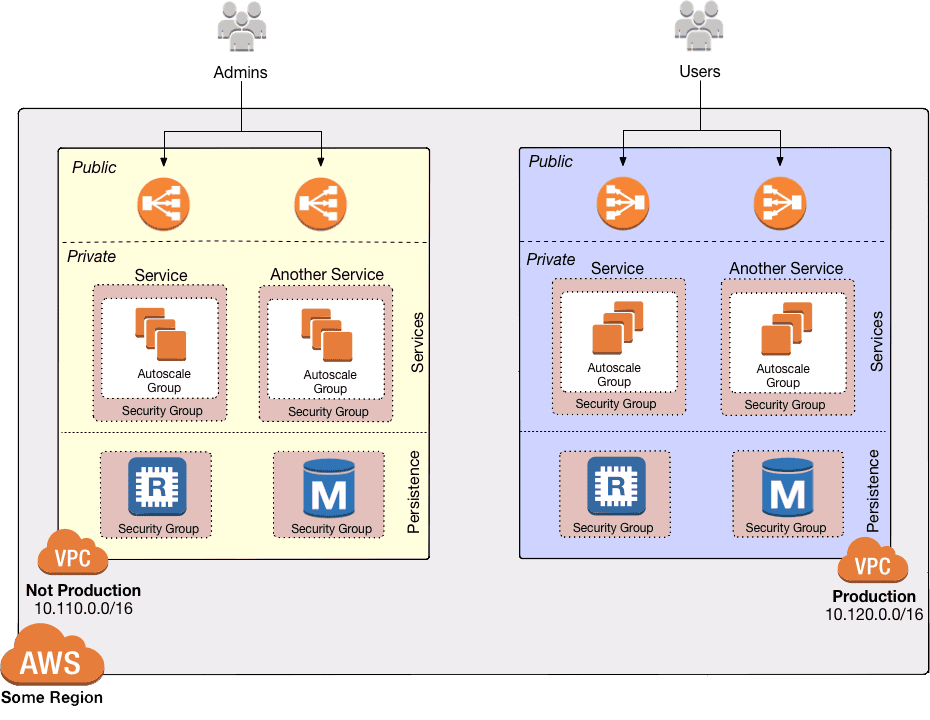

VPC architectureVPC architecture

Features​

  • The VPC itself.
  • Subnets, which are isolated subdivisions within the VPC. There are 3 "tiers" of subnets: public, private app, and private persistence.
  • Route tables, which provide routing rules for the subnets.
  • Internet Gateways to route traffic to the public Internet from public subnets.
  • NATs to route traffic to the public Internet from private subnets.
  • Optionally, VPC peering to a management VPC
  • Optionally, DNS forwarding for a management VPC
  • Optionally, tags for an EKS cluster

Learn​

note

This repo is a part of the Gruntwork Service Catalog, a collection of reusable, battle-tested, production ready infrastructure code. If you’ve never used the Service Catalog before, make sure to read How to use the Gruntwork Service Catalog!

Under the hood, this is all implemented using Terraform modules from the Gruntwork terraform-aws-vpc repo. If you don’t have access to this repo, email support@gruntwork.io.

Core concepts​

To understand core concepts like what’s a VPC, how subnets are configured, how network ACLs work, and more, see the documentation in the terraform-aws-vpc repo.

Repo organization​

  • modules: The main implementation code for this repo, broken down into multiple standalone, orthogonal submodules.
  • examples: This folder contains working examples of how to use the submodules.
  • test: Automated tests for the modules and examples.

Deploy​

Non-production deployment (quick start for learning)​

If you just want to try this repo out for experimenting and learning, check out the following resources:

  • examples/for-learning-and-testing folder: The examples/for-learning-and-testing folder contains standalone sample code optimized for learning, experimenting, and testing (but not direct production usage).

Production deployment​

If you want to deploy this repo in production, check out the following resources:

Sample Usage​

main.tf

# ------------------------------------------------------------------------------------------------------
# DEPLOY GRUNTWORK'S VPC MODULE
# ------------------------------------------------------------------------------------------------------

module "vpc" {

  source = "git::git@github.com:gruntwork-io/terraform-aws-service-catalog.git//modules/networking/vpc?ref=v0.118.1"

  # ----------------------------------------------------------------------------------------------------
  # REQUIRED VARIABLES
  # ----------------------------------------------------------------------------------------------------

  # The IP address range of the VPC in CIDR notation. A prefix of /18 is
  # recommended. Do not use a prefix higher than /27. Examples include
  # '10.100.0.0/18', '10.200.0.0/18', etc.
  cidr_block = <string>

  # The number of NAT Gateways to launch for this VPC. For production VPCs, a
  # NAT Gateway should be placed in each Availability Zone (so likely 3 total),
  # whereas for non-prod VPCs, just one Availability Zone (and hence 1 NAT
  # Gateway) will suffice.
  num_nat_gateways = <number>

  # Name of the VPC. Examples include 'prod', 'dev', 'mgmt', etc.
  vpc_name = <string>

  # ----------------------------------------------------------------------------------------------------
  # OPTIONAL VARIABLES
  # ----------------------------------------------------------------------------------------------------

  # Should the private persistence subnet be allowed outbound access to the
  # internet?
  allow_private_persistence_internet_access = false

  # Should the transit subnet be allowed outbound access to the internet?
  allow_transit_internet_access = false

  # If true, will apply the default NACL rules in var.default_nacl_ingress_rules
  # and var.default_nacl_egress_rules on the default NACL of the VPC. Note that
  # every VPC must have a default NACL - when this is false, the original
  # default NACL rules managed by AWS will be used.
  apply_default_nacl_rules = false

  # (Optional) Requests an Amazon-provided IPv6 CIDR block with a /56 prefix
  # length for the VPC. You cannot specify the range of IP addresses, or the
  # size of the CIDR block. Conflicts with ipv6_ipam_pool_id
  assign_generated_ipv6_cidr_block = null

  # (Optional) Specify true to indicate that network interfaces created in the
  # specified subnet should be assigned an IPv6 address. Default is false
  assign_ipv6_address_on_creation = false

  # If true, will associate the default NACL to the public, private, and
  # persistence subnets created by this module. Only used if
  # var.apply_default_nacl_rules is true. Note that this does not guarantee that
  # the subnets are associated with the default NACL. Subnets can only be
  # associated with a single NACL. The default NACL association will be dropped
  # if the subnets are associated with a custom NACL later.
  associate_default_nacl_to_subnets = true

  # List of excluded Availability Zone IDs.
  availability_zone_exclude_ids = []

  # Specific Availability Zones in which subnets SHOULD NOT be created. Useful
  # for when features / support is missing from a given AZ.
  availability_zone_exclude_names = []

  # List of specific Availability Zone IDs to use. If null (default), all
  # availability zones in the configured AWS region will be used.
  availability_zone_ids = null

  # Allows to filter list of Availability Zones based on their current state.
  # Can be either "available", "information", "impaired" or "unavailable". By
  # default the list includes a complete set of Availability Zones to which the
  # underlying AWS account has access, regardless of their state.
  availability_zone_state = null

  # DEPRECATED. The AWS Region where this VPC will exist. This variable is no
  # longer used and only kept around for backwards compatibility. We now
  # automatically fetch the region using a data source.
  aws_region = ""

  # The base number to append to initial nacl rule number for the first transit
  # rule in private and persistence rules created. All transit rules will be
  # inserted after this number. This base number provides a safeguard to ensure
  # that the transit rules do not overwrite any existing NACL rules in private
  # and persistence subnets.
  base_transit_nacl_rule_number = 1000

  # A map of tags to apply to the Blackhole ENI. The key is the tag name and the
  # value is the tag value. Note that the tag 'Name' is automatically added by
  # this module but may be optionally overwritten by this variable.
  blackhole_network_interface_custom_tags = {}

  # The description of the Blackhole ENI.
  blackhole_network_interface_description = "Blackhole ENI - DO NOT ATTACH TO INSTANCES"

  # The host number in the IP address of the Blackhole ENI. You would only use
  # this if you want the blackhole ENI to always have the same host number
  # within your subnet's CIDR range: e.g., it's always x.x.x.4. For IPv4, this
  # is the fourth octet in the IP address. For IPv6, this is the sixth hextet in
  # the IP address.
  blackhole_network_interface_host_num = null

  # The name of the Blackhole ENI.
  blackhole_network_interface_name = "Blackhole ENI - DO NOT ATTACH TO INSTANCES"

  # A map of objects defining which blackhole routes to create. The key should
  # be the name of a subnet tier: one of public, private-app,
  # private-persistence, or transit. The value should be an object that
  # specifies the CIDR blocks or the names of other subnet tiers (from the same
  # list of public, private-app, private-persistence, transit) to blackhole.
  blackhole_routes = {}

  # If set to true, this module will create a default route table route to the
  # Internet Gateway. If set to false, this module will NOT create a default
  # route table route to the Internet Gateway. This is useful if you have
  # subnets which utilize the default route table. Defaults to true.
  create_default_route_table_route = true

  # Whether or not to create DNS forwarders from the Mgmt VPC to the App VPC to
  # resolve private Route 53 endpoints. This is most useful when you want to
  # keep your EKS Kubernetes API endpoint private to the VPC, but want to access
  # it from the Mgmt VPC (where your VPN/Bastion servers are).
  create_dns_forwarder = false

  # If you set this variable to false, this module will not create VPC Flow Logs
  # resources. This is used as a workaround because Terraform does not allow you
  # to use the 'count' parameter on modules. By using this parameter, you can
  # optionally create or not create the resources within this module.
  create_flow_logs = true

  # Whether the VPC will create an Internet Gateway. There are use cases when
  # the VPC is desired to not be routable from the internet, and hence, they
  # should not have an Internet Gateway. For example, when it is desired that
  # public subnets exist but they are not directly public facing, since they can
  # be routed from other VPC hosting the IGW.
  create_igw = true

  # If set to false, this module will NOT create Network ACLs. This is useful if
  # you don't want to use Network ACLs or you want to provide your own Network
  # ACLs outside of this module.
  create_network_acls = true

  # Whether or not to create a peering connection to another VPC.
  create_peering_connection = false

  # If set to false, this module will NOT create the NACLs for the private app
  # subnet tier.
  create_private_app_subnet_nacls = true

  # If set to false, this module will NOT create the private app subnet tier.
  create_private_app_subnets = true

  # If set to false, this module will NOT create the NACLs for the private
  # persistence subnet tier.
  create_private_persistence_subnet_nacls = true

  # If set to false, this module will NOT create the private persistence subnet
  # tier.
  create_private_persistence_subnets = true

  # If set to false, this module will NOT create the NACLs for the public subnet
  # tier. This is useful for VPCs that only need private subnets.
  create_public_subnet_nacls = true

  # If set to false, this module will NOT create the public subnet tier. This is
  # useful for VPCs that only need private subnets. Note that setting this to
  # false also means the module will NOT create an Internet Gateway or the NAT
  # gateways, so if you want any public Internet access in the VPC (even
  # outbound access—e.g., to run apt get), you'll need to provide it yourself
  # via some other mechanism (e.g., via VPC peering, a Transit Gateway, Direct
  # Connect, etc).
  create_public_subnets = true

  # If set to false, this module will NOT create the NACLs for the transit
  # subnet tier.
  create_transit_subnet_nacls = false

  # If set to false, this module will NOT create the transit subnet tier.
  create_transit_subnets = false

  # Create VPC endpoints for S3 and DynamoDB.
  create_vpc_endpoints = true

  # The list of EIPs (allocation ids) to use for the NAT gateways. Their number
  # has to match the one given in 'num_nat_gateways'. Must be set if
  # var.use_custom_nat_eips us true.
  custom_nat_eips = []

  # A map of tags to apply to the VPC, Subnets, Route Tables, Internet Gateway,
  # default security group, and default NACLs. The key is the tag name and the
  # value is the tag value. Note that the tag 'Name' is automatically added by
  # this module but may be optionally overwritten by this variable.
  custom_tags = {}

  # The egress rules to apply to the default NACL in the VPC. This is the
  # security group that is used by any subnet that doesn't have its own NACL
  # attached. The value for this variable must be a map where the keys are a
  # unique name for each rule and the values are objects with the same fields as
  # the egress block in the aws_default_network_acl resource:
  # https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_network_acl.
  default_nacl_egress_rules = {"AllowAll":{"action":"allow","cidr_block":"0.0.0.0/0","from_port":0,"protocol":"-1","rule_no":100,"to_port":0}}

  # The ingress rules to apply to the default NACL in the VPC. This is the NACL
  # that is used by any subnet that doesn't have its own NACL attached. The
  # value for this variable must be a map where the keys are a unique name for
  # each rule and the values are objects with the same fields as the ingress
  # block in the aws_default_network_acl resource:
  # https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_network_acl.
  default_nacl_ingress_rules = {"AllowAll":{"action":"allow","cidr_block":"0.0.0.0/0","from_port":0,"protocol":"-1","rule_no":100,"to_port":0}}

  # The egress rules to apply to the default security group in the VPC. This is
  # the security group that is used by any resource that doesn't have its own
  # security group attached. The value for this variable must be a map where the
  # keys are a unique name for each rule and the values are objects with the
  # same fields as the egress block in the aws_default_security_group resource:
  # https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_security_group#egress-block.
  default_security_group_egress_rules = {"AllowAllOutbound":{"cidr_blocks":["0.0.0.0/0"],"from_port":0,"ipv6_cidr_blocks":["::/0"],"protocol":"-1","to_port":0}}

  # The ingress rules to apply to the default security group in the VPC. This is
  # the security group that is used by any resource that doesn't have its own
  # security group attached. The value for this variable must be a map where the
  # keys are a unique name for each rule and the values are objects with the
  # same fields as the ingress block in the aws_default_security_group resource:
  # https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_security_group#ingress-block.
  default_security_group_ingress_rules = {"AllowAllFromSelf":{"from_port":0,"protocol":"-1","self":true,"to_port":0}}

  # Name to set for the destination VPC resolver (inbound from origin VPC to
  # destination VPC). If null (default), defaults to
  # 'DESTINATION_VPC_NAME-from-ORIGIN_VPC_NAME-in'.
  destination_vpc_resolver_name = null

  # IAM policy to restrict what resources can call this endpoint. For example,
  # you can add an IAM policy that allows EC2 instances to talk to this endpoint
  # but no other types of resources. If not specified, all resources will be
  # allowed to call this endpoint.
  dynamodb_endpoint_policy = null

  # The names of EKS clusters that will be deployed into the VPC, if
  # var.tag_for_use_with_eks is true.
  eks_cluster_names = []

  # If set to false, the default security groups will NOT be created.
  enable_default_security_group = true

  # (Optional) A boolean flag to enable/disable DNS hostnames in the VPC.
  # Defaults true.
  enable_dns_hostnames = true

  # (Optional) A boolean flag to enable/disable DNS support in the VPC. Defaults
  # true.
  enable_dns_support = true

  # (Optional) Enables IPv6 resources for the VPC. Defaults to false.
  enable_ipv6 = false

  # (Optional) A boolean flag to enable/disable network address usage metrics in
  # the VPC. Defaults false.
  enable_network_address_usage_metrics = false

  # (Optional) A boolean flag to enable/disable a private NAT gateway. If this
  # is set to true, it will disable public NAT gateways. Private NAT gateways
  # are deployed into transit subnets and require setting
  # 'var.create_transit_subnets = true'. Defaults false.
  enable_private_nat = false

  # Additional IAM policies to apply to the S3 bucket to store flow logs. You
  # can use this to grant read/write access beyond what is provided to the VPC.
  # This should be a map, where each key is a unique statement ID (SID), and
  # each value is an object that contains the parameters defined in the comment
  # below.
  flow_log_additional_s3_bucket_policy_statements = null

  # The name to use for the flow log IAM role. This can be useful if you
  # provision the VPC without admin privileges which needs setting IAM:PassRole
  # on deployment role. When null, a default name based on the VPC name will be
  # chosen.
  flow_log_cloudwatch_iam_role_name = null

  # The name to use for the CloudWatch Log group used for storing flow log. When
  # null, a default name based on the VPC name will be chosen.
  flow_log_cloudwatch_log_group_name = null

  # Specifies the number of days you want to retain log events. Possible values
  # are: 1, 3, 5, 7, 14, 30, 60, 90, 120, 150, 180, 365, 400, 545, 731, 1096,
  # 1827, 2192, 2557, 2922, 3288, 3653, and 0. If you select 0, the events in
  # the log group are always retained and never expire.
  flow_log_cloudwatch_log_group_retention_in_days = 0

  # A map of options to apply to the destination. Valid keys are file_format,
  # hive_compatible_partitions, and per_hour_partition.
  flow_log_destination_options = null

  # The destination for the flow log. Valid values are cloud-watch-logs or s3.
  # Defaults to cloud-watch-logs.
  flow_log_destination_type = "cloud-watch-logs"

  # Boolean to determine whether to use a custom S3 bucket for the flow log
  # destination. If set to true, you must specify the flow_log_s3_bucket_arn
  # variable. Defaults to false.
  flow_log_enable_custom_s3_destination = false

  # Boolean to determine whether flow logs should be deleted if the S3 bucket is
  # removed by terraform. Defaults to false.
  flow_log_force_destroy_bucket = false

  # The maximum interval of time during which a flow of packets is captured and
  # aggregated into a flow log record. Valid values: 60 seconds (1 minute) or
  # 600 seconds (10 minutes).
  flow_log_max_aggregation_interval = 600

  # The existing S3 bucket arn to use for the flow log destination. If this is
  # not set, a new S3 bucket will be created. Defaults to null.
  flow_log_s3_bucket_arn = null

  # The name to use for the S3 bucket created along with the VPC flow log
  # resources.
  flow_log_s3_bucket_name = null

  # For s3 log destinations, the number of days after which to expire
  # (permanently delete) flow logs. Defaults to 365.
  flow_log_s3_expiration_transition = 365

  # For s3 log destinations, the number of days after which to transition the
  # flow log objects to glacier. Defaults to 180.
  flow_log_s3_glacier_transition = 180

  # For s3 log destinations, the number of days after which to transition the
  # flow log objects to infrequent access. Defaults to 30.
  flow_log_s3_infrequent_access_transition = 30

  # If log_destination_type is s3, optionally specify a subfolder for flow log
  # delivery.
  flow_log_s3_subfolder = ""

  # The type of traffic to capture in the VPC flow log. Valid values include
  # ACCEPT, REJECT, or ALL. Defaults to REJECT. Only used if create_flow_logs is
  # true.
  flow_logs_traffic_type = "REJECT"

  # The amount of spacing between the different subnet types when all subnets
  # are present, such as the transit subnets.
  global_subnet_spacing = 6

  # The ARN of the policy that is used to set the permissions boundary for the
  # IAM role.
  iam_role_permissions_boundary = null

  # Filters to select the IPv4 IPAM pool to use for allocated this VPCs
  ipv4_ipam_pool_filters = null

  # The ID of an IPv4 IPAM pool you want to use for allocating this VPC's CIDR.
  ipv4_ipam_pool_id = null

  # (Optional) The length of the IPv4 CIDR netmask. Requires utilizing an
  # ipv4_ipam_pool_id. Defaults to null.
  ipv4_netmask_length = null

  # (Optional) IPv6 CIDR block to request from an IPAM Pool. Can be set
  # explicitly or derived from IPAM using ipv6_netmask_length. If not provided,
  # no IPv6 CIDR block will be allocated.
  ipv6_cidr_block = null

  # (Optional) By default when an IPv6 CIDR is assigned to a VPC a default
  # ipv6_cidr_block_network_border_group will be set to the region of the VPC.
  # This can be changed to restrict advertisement of public addresses to
  # specific Network Border Groups such as LocalZones.
  ipv6_cidr_block_network_border_group = null

  # Filters to select the IPv6 IPAM pool to use for allocated this VPCs
  ipv6_ipam_pool_filters = null

  # (Optional) IPAM Pool ID for a IPv6 pool. Conflicts with
  # assign_generated_ipv6_cidr_block.
  ipv6_ipam_pool_id = null

  # (Optional) Netmask length to request from IPAM Pool. Conflicts with
  # ipv6_cidr_block. This can be omitted if IPAM pool as a
  # allocation_default_netmask_length set. Valid values: 56.
  ipv6_netmask_length = null

  # (Optional) The number of additional bits to use in the VPC IPv6 CIDR block.
  # The end result must be between a /56 netmask and /64 netmask. These bits are
  # added to the VPC CIDR block bits. Example: /56 + 8 bits = /64 Defaults to 8
  # bits for a /64.
  ipv6_subnet_bits = 8

  # The ARN of a KMS key to use for encrypting VPC the flow log. A new KMS key
  # will be created if this is not supplied.
  kms_key_arn = null

  # The number of days to retain this KMS Key (a Customer Master Key) after it
  # has been marked for deletion. Setting to null defaults to the provider
  # default, which is the maximum possible value (30 days).
  kms_key_deletion_window_in_days = null

  # VPC Flow Logs will be encrypted with a KMS Key (a Customer Master Key). The
  # IAM Users specified in this list will have access to this key.
  kms_key_user_iam_arns = null

  # Specify true to indicate that instances launched into the public subnet
  # should be assigned a public IP address (versus a private IP address)
  map_public_ip_on_launch = false

  # A map of tags to apply to the NAT gateways, on top of the custom_tags. The
  # key is the tag name and the value is the tag value. Note that tags defined
  # here will override tags defined as custom_tags in case of conflict.
  nat_gateway_custom_tags = {}

  # The host number in the IP address of the NAT Gateway. You would only use
  # this if you want the NAT Gateway to always have the same host number within
  # your subnet's CIDR range: e.g., it's always x.x.x.4. For IPv4, this is the
  # fourth octet in the IP address.
  nat_private_ip_host_num = null

  # (Optional) The number of secondary private IP addresses to assign to each
  # NAT gateway. These IP addresses are used for source NAT (SNAT) for the
  # instances in the private subnets. Defaults to 0.
  nat_secondary_private_ip_address_count = 0

  # How many AWS Availability Zones (AZs) to use. One subnet of each type
  # (public, private app) will be created in each AZ. Note that this must be
  # less than or equal to the total number of AZs in a region. A value of null
  # means all AZs should be used. For example, if you specify 3 in a region with
  # 5 AZs, subnets will be created in just 3 AZs instead of all 5. Defaults to
  # all AZs in a region.
  num_availability_zones = null

  # If set to true, create one route table shared amongst all the public
  # subnets; if set to false, create a separate route table per public subnet.
  # Historically, we created one route table for all the public subnets, as they
  # all routed through the Internet Gateway anyway, but in certain use cases
  # (e.g., for use with Network Firewall), you may want to have separate route
  # tables for each public subnet.
  one_route_table_public_subnets = true

  # The CIDR block of the origin VPC.
  origin_vpc_cidr_block = null

  # The ID of the origin VPC to use when creating peering connections and DNS
  # forwarding.
  origin_vpc_id = null

  # The name of the origin VPC to use when creating peering connections and DNS
  # forwarding.
  origin_vpc_name = null

  # The public subnets in the origin VPC to use when creating route53 resolvers.
  # These are public subnets due to network ACLs restrictions. Although the
  # forwarder is addressable publicly, access is blocked by security groups.
  origin_vpc_public_subnet_ids = null

  # Name to set for the origin VPC resolver (outbound from origin VPC to
  # destination VPC). If null (default), defaults to
  # 'ORIGIN_VPC_NAME-to-DESTINATION_VPC_NAME-out'.
  origin_vpc_resolver_name = null

  # A list of route tables from the origin VPC that should have routes to this
  # app VPC.
  origin_vpc_route_table_ids = []

  # A list of Virtual Private Gateways that will propagate routes to persistence
  # subnets. All routes from VPN connections that use Virtual Private Gateways
  # listed here will appear in route tables of persistence subnets. If left
  # empty, no routes will be propagated.
  persistence_propagating_vgws = []

  # Takes the CIDR prefix and adds these many bits to it for calculating subnet
  # ranges.  MAKE SURE if you change this you also change the CIDR spacing or
  # you may hit errors.  See cidrsubnet interpolation in terraform config for
  # more information.
  persistence_subnet_bits = 5

  # The amount of spacing between the private persistence subnets. Default: 2
  # times the value of private_subnet_spacing.
  persistence_subnet_spacing = null

  # Set to false to prevent the private app subnet from allowing traffic from
  # the transit subnet. Only used if create_transit_subnet_nacls is set to true.
  private_app_allow_inbound_from_transit_network = true

  # A map of unique names to client IP CIDR block and inbound ports that should
  # be exposed in the private app subnet tier nACLs. This is useful when
  # exposing your service on a privileged port with an NLB, where the address
  # isn't translated.
  private_app_allow_inbound_ports_from_cidr = {}

  # A map of unique names to destination IP CIDR block and outbound ports that
  # should be allowed in the private app subnet tier nACLs. This is useful when
  # allowing your VPC specific outbound communication to defined CIDR
  # blocks(known networks)
  private_app_allow_outbound_ports_to_destination_cidr = {}

  # A map of tags to apply to the private-app route table(s), on top of the
  # custom_tags. The key is the tag name and the value is the tag value. Note
  # that tags defined here will override tags defined as custom_tags in case of
  # conflict.
  private_app_route_table_custom_tags = {}

  # A map listing the specific CIDR blocks desired for each private-app subnet.
  # The key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of
  # Availability Zones. If left blank, we will compute a reasonable CIDR block
  # for each subnet.
  private_app_subnet_cidr_blocks = {}

  # A map of tags to apply to the private-app Subnet, on top of the custom_tags.
  # The key is the tag name and the value is the tag value. Note that tags
  # defined here will override tags defined as custom_tags in case of conflict.
  private_app_subnet_custom_tags = {}

  # Set to false to prevent the private persistence subnet from allowing traffic
  # from the transit subnet. Only used if create_transit_subnet_nacls is set to
  # true.
  private_persistence_allow_inbound_from_transit_network = true

  # A map of tags to apply to the private-persistence route tables(s), on top of
  # the custom_tags. The key is the tag name and the value is the tag value.
  # Note that tags defined here will override tags defined as custom_tags in
  # case of conflict.
  private_persistence_route_table_custom_tags = {}

  # A map listing the specific CIDR blocks desired for each private-persistence
  # subnet. The key must be in the form AZ-0, AZ-1, ... AZ-n where n is the
  # number of Availability Zones. If left blank, we will compute a reasonable
  # CIDR block for each subnet.
  private_persistence_subnet_cidr_blocks = {}

  # A map of tags to apply to the private-persistence Subnet, on top of the
  # custom_tags. The key is the tag name and the value is the tag value. Note
  # that tags defined here will override tags defined as custom_tags in case of
  # conflict.
  private_persistence_subnet_custom_tags = {}

  # The name of the private persistence subnet tier. This is used to tag the
  # subnet and its resources.
  private_persistence_subnet_name = "private-persistence"

  # A list of Virtual Private Gateways that will propagate routes to private
  # subnets. All routes from VPN connections that use Virtual Private Gateways
  # listed here will appear in route tables of private subnets. If left empty,
  # no routes will be propagated.
  private_propagating_vgws = []

  # Takes the CIDR prefix and adds these many bits to it for calculating subnet
  # ranges.  MAKE SURE if you change this you also change the CIDR spacing or
  # you may hit errors.  See cidrsubnet interpolation in terraform config for
  # more information.
  private_subnet_bits = 5

  # The name of the private subnet tier. This is used to tag the subnet and its
  # resources.
  private_subnet_name = "private-app"

  # The amount of spacing between private app subnets. Defaults to
  # subnet_spacing in vpc-app module if not set.
  private_subnet_spacing = null

  # A list of Virtual Private Gateways that will propagate routes to public
  # subnets. All routes from VPN connections that use Virtual Private Gateways
  # listed here will appear in route tables of public subnets. If left empty, no
  # routes will be propagated.
  public_propagating_vgws = []

  # A map of tags to apply to the public route table(s), on top of the
  # custom_tags. The key is the tag name and the value is the tag value. Note
  # that tags defined here will override tags defined as custom_tags in case of
  # conflict.
  public_route_table_custom_tags = {}

  # Takes the CIDR prefix and adds these many bits to it for calculating subnet
  # ranges.  MAKE SURE if you change this you also change the CIDR spacing or
  # you may hit errors.  See cidrsubnet interpolation in terraform config for
  # more information.
  public_subnet_bits = 5

  # A map listing the specific CIDR blocks desired for each public subnet. The
  # key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of
  # Availability Zones. If left blank, we will compute a reasonable CIDR block
  # for each subnet.
  public_subnet_cidr_blocks = {}

  # A map of tags to apply to the public Subnet, on top of the custom_tags. The
  # key is the tag name and the value is the tag value. Note that tags defined
  # here will override tags defined as custom_tags in case of conflict.
  public_subnet_custom_tags = {}

  # (Optional) A map listing the specific IPv6 CIDR blocks desired for each
  # public subnet. The key must be in the form AZ-0, AZ-1, ... AZ-n where n is
  # the number of Availability Zones. If left blank, we will compute a
  # reasonable CIDR block for each subnet.
  public_subnet_ipv6_cidr_blocks = {}

  # The name of the public subnet tier. This is used to tag the subnet and its
  # resources.
  public_subnet_name = "public"

  # The timeout for the creation of the Route Tables. It defines how long to
  # wait for a route table to be created before considering the operation
  # failed. Ref:
  # https://www.terraform.io/language/resources/syntax#operation-timeouts
  route_table_creation_timeout = "5m"

  # The timeout for the deletion of the Route Tables. It defines how long to
  # wait for a route table to be deleted before considering the operation
  # failed. Ref:
  # https://www.terraform.io/language/resources/syntax#operation-timeouts
  route_table_deletion_timeout = "5m"

  # The timeout for the update of the Route Tables. It defines how long to wait
  # for a route table to be updated before considering the operation failed.
  # Ref: https://www.terraform.io/language/resources/syntax#operation-timeouts
  route_table_update_timeout = "2m"

  # IAM policy to restrict what resources can call this endpoint. For example,
  # you can add an IAM policy that allows EC2 instances to talk to this endpoint
  # but no other types of resources. If not specified, all resources will be
  # allowed to call this endpoint.
  s3_endpoint_policy = null

  # A list of secondary CIDR blocks to associate with the VPC.
  secondary_cidr_blocks = []

  # A map of tags to apply to the default Security Group, on top of the
  # custom_tags. The key is the tag name and the value is the tag value. Note
  # that tags defined here will override tags defined as custom_tags in case of
  # conflict.
  security_group_tags = {}

  # The amount of spacing between the different subnet types
  subnet_spacing = 10

  # The VPC resources need special tags for discoverability by Kubernetes to use
  # with certain features, like deploying ALBs.
  tag_for_use_with_eks = false

  # The allowed tenancy of instances launched into the selected VPC. Must be one
  # of: default, dedicated, or host.
  tenancy = "default"

  # A list of Virtual Private Gateways that will propagate routes to transit
  # subnets. All routes from VPN connections that use Virtual Private Gateways
  # listed here will appear in route tables of transit subnets. If left empty,
  # no routes will be propagated.
  transit_propagating_vgws = []

  # A map of tags to apply to the transit route table(s), on top of the
  # custom_tags. The key is the tag name and the value is the tag value. Note
  # that tags defined here will override tags defined as custom_tags in case of
  # conflict.
  transit_route_table_custom_tags = {}

  # Takes the CIDR prefix and adds these many bits to it for calculating subnet
  # ranges.  MAKE SURE if you change this you also change the CIDR spacing or
  # you may hit errors.  See cidrsubnet interpolation in terraform config for
  # more information.
  transit_subnet_bits = 5

  # A map listing the specific CIDR blocks desired for each transit subnet. The
  # key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of
  # Availability Zones. If left blank, we will compute a reasonable CIDR block
  # for each subnet.
  transit_subnet_cidr_blocks = {}

  # A map of tags to apply to the transit Subnet, on top of the custom_tags. The
  # key is the tag name and the value is the tag value. Note that tags defined
  # here will override tags defined as custom_tags in case of conflict.
  transit_subnet_custom_tags = {}

  # The name of the transit subnet tier. This is used to tag the subnet and its
  # resources.
  transit_subnet_name = "transit"

  # The amount of spacing between the transit subnets.
  transit_subnet_spacing = null

  # Set to true to use existing EIPs, passed in via var.custom_nat_eips, for the
  # NAT gateway(s), instead of creating new ones.
  use_custom_nat_eips = false

  # When true, all IAM policies will be managed as dedicated policies rather
  # than inline policies attached to the IAM roles. Dedicated managed policies
  # are friendlier to automated policy checkers, which may scan a single
  # resource for findings. As such, it is important to avoid inline policies
  # when targeting compliance with various security standards.
  use_managed_iam_policies = true

  # A map of tags to apply just to the VPC itself, but not any of the other
  # resources. The key is the tag name and the value is the tag value. Note that
  # tags defined here will override tags defined as custom_tags in case of
  # conflict.
  vpc_custom_tags = {}

}


Reference​

Required​

cidr_blockstringrequired

The IP address range of the VPC in CIDR notation. A prefix of /18 is recommended. Do not use a prefix higher than /27. Examples include '10.100.0.0/18', '10.200.0.0/18', etc.

num_nat_gatewaysnumberrequired

The number of NAT Gateways to launch for this VPC. For production VPCs, a NAT Gateway should be placed in each Availability Zone (so likely 3 total), whereas for non-prod VPCs, just one Availability Zone (and hence 1 NAT Gateway) will suffice.

vpc_namestringrequired

Name of the VPC. Examples include 'prod', 'dev', 'mgmt', etc.

Optional​

Should the private persistence subnet be allowed outbound access to the internet?

false

Should the transit subnet be allowed outbound access to the internet?

false

If true, will apply the default NACL rules in default_nacl_ingress_rules and default_nacl_egress_rules on the default NACL of the VPC. Note that every VPC must have a default NACL - when this is false, the original default NACL rules managed by AWS will be used.

false

(Optional) Requests an Amazon-provided IPv6 CIDR block with a /56 prefix length for the VPC. You cannot specify the range of IP addresses, or the size of the CIDR block. Conflicts with ipv6_ipam_pool_id

null

(Optional) Specify true to indicate that network interfaces created in the specified subnet should be assigned an IPv6 address. Default is false

false

If true, will associate the default NACL to the public, private, and persistence subnets created by this module. Only used if apply_default_nacl_rules is true. Note that this does not guarantee that the subnets are associated with the default NACL. Subnets can only be associated with a single NACL. The default NACL association will be dropped if the subnets are associated with a custom NACL later.

true
availability_zone_exclude_idslist(string)optional

List of excluded Availability Zone IDs.

[]

Specific Availability Zones in which subnets SHOULD NOT be created. Useful for when features / support is missing from a given AZ.

[]
availability_zone_idslist(string)optional

List of specific Availability Zone IDs to use. If null (default), all availability zones in the configured AWS region will be used.

null

Allows to filter list of Availability Zones based on their current state. Can be either 'available', 'information', 'impaired' or 'unavailable'. By default the list includes a complete set of Availability Zones to which the underlying AWS account has access, regardless of their state.

null
aws_regionstringoptional

DEPRECATED. The AWS Region where this VPC will exist. This variable is no longer used and only kept around for backwards compatibility. We now automatically fetch the region using a data source.

""

The base number to append to initial nacl rule number for the first transit rule in private and persistence rules created. All transit rules will be inserted after this number. This base number provides a safeguard to ensure that the transit rules do not overwrite any existing NACL rules in private and persistence subnets.

1000

A map of tags to apply to the Blackhole ENI. The key is the tag name and the value is the tag value. Note that the tag 'Name' is automatically added by this module but may be optionally overwritten by this variable.

{}

The description of the Blackhole ENI.

"Blackhole ENI - DO NOT ATTACH TO INSTANCES"

The host number in the IP address of the Blackhole ENI. You would only use this if you want the blackhole ENI to always have the same host number within your subnet's CIDR range: e.g., it's always x.x.x.4. For IPv4, this is the fourth octet in the IP address. For IPv6, this is the sixth hextet in the IP address.

null

The name of the Blackhole ENI.

"Blackhole ENI - DO NOT ATTACH TO INSTANCES"
blackhole_routesmap(object(…))optional

A map of objects defining which blackhole routes to create. The key should be the name of a subnet tier: one of public, private-app, private-persistence, or transit. The value should be an object that specifies the CIDR blocks or the names of other subnet tiers (from the same list of public, private-app, private-persistence, transit) to blackhole.

map(object({
    destination_cidr_blocks  = list(string)
    destination_subnet_names = list(string)
  }))
{}

If set to true, this module will create a default route table route to the Internet Gateway. If set to false, this module will NOT create a default route table route to the Internet Gateway. This is useful if you have subnets which utilize the default route table. Defaults to true.

true

Whether or not to create DNS forwarders from the Mgmt VPC to the App VPC to resolve private Route 53 endpoints. This is most useful when you want to keep your EKS Kubernetes API endpoint private to the VPC, but want to access it from the Mgmt VPC (where your VPN/Bastion servers are).

false
create_flow_logsbooloptional

If you set this variable to false, this module will not create VPC Flow Logs resources. This is used as a workaround because Terraform does not allow you to use the 'count' parameter on modules. By using this parameter, you can optionally create or not create the resources within this module.

true
create_igwbooloptional

Whether the VPC will create an Internet Gateway. There are use cases when the VPC is desired to not be routable from the internet, and hence, they should not have an Internet Gateway. For example, when it is desired that public subnets exist but they are not directly public facing, since they can be routed from other VPC hosting the IGW.

true

If set to false, this module will NOT create Network ACLs. This is useful if you don't want to use Network ACLs or you want to provide your own Network ACLs outside of this module.

true

Whether or not to create a peering connection to another VPC.

false

If set to false, this module will NOT create the NACLs for the private app subnet tier.

true

If set to false, this module will NOT create the private app subnet tier.

true

If set to false, this module will NOT create the NACLs for the private persistence subnet tier.

true

If set to false, this module will NOT create the private persistence subnet tier.

true

If set to false, this module will NOT create the NACLs for the public subnet tier. This is useful for VPCs that only need private subnets.

true

If set to false, this module will NOT create the public subnet tier. This is useful for VPCs that only need private subnets. Note that setting this to false also means the module will NOT create an Internet Gateway or the NAT gateways, so if you want any public Internet access in the VPC (even outbound access—e.g., to run apt get), you'll need to provide it yourself via some other mechanism (e.g., via VPC peering, a Transit Gateway, Direct Connect, etc).

true

If set to false, this module will NOT create the NACLs for the transit subnet tier.

false

If set to false, this module will NOT create the transit subnet tier.

false

Create VPC endpoints for S3 and DynamoDB.

true
custom_nat_eipslist(string)optional

The list of EIPs (allocation ids) to use for the NAT gateways. Their number has to match the one given in 'num_nat_gateways'. Must be set if use_custom_nat_eips us true.

[]
custom_tagsmap(string)optional

A map of tags to apply to the VPC, Subnets, Route Tables, Internet Gateway, default security group, and default NACLs. The key is the tag name and the value is the tag value. Note that the tag 'Name' is automatically added by this module but may be optionally overwritten by this variable.

{}

The egress rules to apply to the default NACL in the VPC. This is the security group that is used by any subnet that doesn't have its own NACL attached. The value for this variable must be a map where the keys are a unique name for each rule and the values are objects with the same fields as the egress block in the aws_default_network_acl resource: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_network_acl.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{
  AllowAll = {
    action = "allow",
    cidr_block = "0.0.0.0/0",
    from_port = 0,
    protocol = "-1",
    rule_no = 100,
    to_port = 0
  }
}

The ingress rules to apply to the default NACL in the VPC. This is the NACL that is used by any subnet that doesn't have its own NACL attached. The value for this variable must be a map where the keys are a unique name for each rule and the values are objects with the same fields as the ingress block in the aws_default_network_acl resource: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_network_acl.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{
  AllowAll = {
    action = "allow",
    cidr_block = "0.0.0.0/0",
    from_port = 0,
    protocol = "-1",
    rule_no = 100,
    to_port = 0
  }
}

The egress rules to apply to the default security group in the VPC. This is the security group that is used by any resource that doesn't have its own security group attached. The value for this variable must be a map where the keys are a unique name for each rule and the values are objects with the same fields as the egress block in the aws_default_security_group resource: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_security_group#egress-block.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{
  AllowAllOutbound = {
    cidr_blocks = [
      "0.0.0.0/0"
    ],
    from_port = 0,
    ipv6_cidr_blocks = [
      "::/0"
    ],
    protocol = "-1",
    to_port = 0
  }
}

The ingress rules to apply to the default security group in the VPC. This is the security group that is used by any resource that doesn't have its own security group attached. The value for this variable must be a map where the keys are a unique name for each rule and the values are objects with the same fields as the ingress block in the aws_default_security_group resource: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/default_security_group#ingress-block.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
{
  AllowAllFromSelf = {
    from_port = 0,
    protocol = "-1",
    self = true,
    to_port = 0
  }
}

Name to set for the destination VPC resolver (inbound from origin VPC to destination VPC). If null (default), defaults to 'DESTINATION_VPC_NAME-from-ORIGIN_VPC_NAME-in'.

null

IAM policy to restrict what resources can call this endpoint. For example, you can add an IAM policy that allows EC2 instances to talk to this endpoint but no other types of resources. If not specified, all resources will be allowed to call this endpoint.

null
eks_cluster_nameslist(string)optional

The names of EKS clusters that will be deployed into the VPC, if tag_for_use_with_eks is true.

[]

If set to false, the default security groups will NOT be created.

true

(Optional) A boolean flag to enable/disable DNS hostnames in the VPC. Defaults true.

true
enable_dns_supportbooloptional

(Optional) A boolean flag to enable/disable DNS support in the VPC. Defaults true.

true
enable_ipv6booloptional

(Optional) Enables IPv6 resources for the VPC. Defaults to false.

false

(Optional) A boolean flag to enable/disable network address usage metrics in the VPC. Defaults false.

false
enable_private_natbooloptional

(Optional) A boolean flag to enable/disable a private NAT gateway. If this is set to true, it will disable public NAT gateways. Private NAT gateways are deployed into transit subnets and require setting 'create_transit_subnets = true'. Defaults false.

false

Additional IAM policies to apply to the S3 bucket to store flow logs. You can use this to grant read/write access beyond what is provided to the VPC. This should be a map, where each key is a unique statement ID (SID), and each value is an object that contains the parameters defined in the comment below.

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.
null
Example
   {
      AllIamUsersReadAccess = {
        effect     = "Allow"
        actions    = ["s3:GetObject"]
        principals = {
          AWS = ["arn:aws:iam::111111111111:user/ann", "arn:aws:iam::111111111111:user/bob"]
        }
        condition = {
          SourceVPCCheck = {
            test = "StringEquals"
            variable = "aws:SourceVpc"
            values = ["vpc-abcd123"]
          }
        }
      }
   }

Details

   See the 'statement' block in the aws_iam_policy_document data
   source for context: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/data-sources/iam_policy_document

   - effect           string            (optional): Either "Allow" or "Deny", to specify whether this statement allows
                                                    or denies the given actions.
   - actions          list(string)      (optional): A list of actions that this statement either allows or denies. For
                                                    example, ["s3:GetObject", "s3:PutObject"].
   - not_actions      list(string)      (optional): A list of actions that this statement does NOT apply to. Used to
                                                    apply a policy statement to all actions except those listed.
   - principals       map(list(string)) (optional): The principals to which this statement applies. The keys are the
                                                    principal type ("AWS", "Service", or "Federated") and the value is
                                                    a list of identifiers.
   - not_principals   map(list(string)) (optional): The principals to which this statement does NOT apply. The keys are
                                                    the principal type ("AWS", "Service", or "Federated") and the value
                                                    is a list of identifiers.
   - keys             list(string)      (optional): A list of keys within the bucket to which this policy applies. For
                                                    example, ["", "/*"] would apply to (a) the bucket itself and (b)
                                                   all keys within the bucket. The default is [""].
   - condition        map(object)       (optional): A nested configuration block (described below) that defines a
                                                    further, possibly-service-specific condition that constrains
                                                    whether this statement applies.

   condition is a map ndition to an object that can define the following properties:

   - test             string            (required): The name of the IAM condition operator to evaluate.
   - variable         string            (required): The name of a Context Variable to apply the condition to. Context
                                                    variables may either be standard AWS variables starting with aws:,
                                                    or service-specific variables prefixed with the service name.
   - values           list(string)      (required): The values to evaluate the condition against. If multiple values
                                                    are provided, the condition matches if at least one of them
                                                    applies. (That is, the tests are combined with the "OR" boolean
                                                    operation.)

Details

   Ideally, this would be a map(object({...})), but the Terraform object type constraint doesn't support optional
   parameters, whereas IAM policy statements have many optional params. And we can't even use map(any), as the
   Terraform map type constraint requires all values to have the same type ("shape"), but as each object in the map
   may specify different optional params, this won't work either. So, sadly, we are forced to fall back to "any."

The name to use for the flow log IAM role. This can be useful if you provision the VPC without admin privileges which needs setting IAM:PassRole on deployment role. When null, a default name based on the VPC name will be chosen.

null

The name to use for the CloudWatch Log group used for storing flow log. When null, a default name based on the VPC name will be chosen.

null

Specifies the number of days you want to retain log events. Possible values are: 1, 3, 5, 7, 14, 30, 60, 90, 120, 150, 180, 365, 400, 545, 731, 1096, 1827, 2192, 2557, 2922, 3288, 3653, and 0. If you select 0, the events in the log group are always retained and never expire.

0
flow_log_destination_optionsmap(string)optional

A map of options to apply to the destination. Valid keys are file_format, hive_compatible_partitions, and per_hour_partition.

null

The destination for the flow log. Valid values are cloud-watch-logs or s3. Defaults to cloud-watch-logs.

"cloud-watch-logs"

Boolean to determine whether to use a custom S3 bucket for the flow log destination. If set to true, you must specify the flow_log_s3_bucket_arn variable. Defaults to false.

false

Boolean to determine whether flow logs should be deleted if the S3 bucket is removed by terraform. Defaults to false.

false

The maximum interval of time during which a flow of packets is captured and aggregated into a flow log record. Valid values: 60 seconds (1 minute) or 600 seconds (10 minutes).

600

The existing S3 bucket arn to use for the flow log destination. If this is not set, a new S3 bucket will be created. Defaults to null.

null

The name to use for the S3 bucket created along with the VPC flow log resources.

null

For s3 log destinations, the number of days after which to expire (permanently delete) flow logs. Defaults to 365.

365

For s3 log destinations, the number of days after which to transition the flow log objects to glacier. Defaults to 180.

180

For s3 log destinations, the number of days after which to transition the flow log objects to infrequent access. Defaults to 30.

30
flow_log_s3_subfolderstringoptional

If log_destination_type is s3, optionally specify a subfolder for flow log delivery.

""

The type of traffic to capture in the VPC flow log. Valid values include ACCEPT, REJECT, or ALL. Defaults to REJECT. Only used if create_flow_logs is true.

"REJECT"
global_subnet_spacingnumberoptional

The amount of spacing between the different subnet types when all subnets are present, such as the transit subnets.

6

The ARN of the policy that is used to set the permissions boundary for the IAM role.

null
ipv4_ipam_pool_filterslist(object(…))optional

Filters to select the IPv4 IPAM pool to use for allocated this VPCs

list(object({
    name   = string
    values = list(string)
  }))
null
ipv4_ipam_pool_idstringoptional

The ID of an IPv4 IPAM pool you want to use for allocating this VPC's CIDR.

null
ipv4_netmask_lengthnumberoptional

(Optional) The length of the IPv4 CIDR netmask. Requires utilizing an ipv4_ipam_pool_id. Defaults to null.

null
ipv6_cidr_blockstringoptional

(Optional) IPv6 CIDR block to request from an IPAM Pool. Can be set explicitly or derived from IPAM using ipv6_netmask_length. If not provided, no IPv6 CIDR block will be allocated.

null

(Optional) By default when an IPv6 CIDR is assigned to a VPC a default ipv6_cidr_block_network_border_group will be set to the region of the VPC. This can be changed to restrict advertisement of public addresses to specific Network Border Groups such as LocalZones.

null
ipv6_ipam_pool_filterslist(object(…))optional

Filters to select the IPv6 IPAM pool to use for allocated this VPCs

list(object({
    name   = string
    values = list(string)
  }))
null
ipv6_ipam_pool_idstringoptional

(Optional) IPAM Pool ID for a IPv6 pool. Conflicts with assign_generated_ipv6_cidr_block.

null
ipv6_netmask_lengthnumberoptional

(Optional) Netmask length to request from IPAM Pool. Conflicts with ipv6_cidr_block. This can be omitted if IPAM pool as a allocation_default_netmask_length set. Valid values: 56.

null
ipv6_subnet_bitsnumberoptional

(Optional) The number of additional bits to use in the VPC IPv6 CIDR block. The end result must be between a /56 netmask and /64 netmask. These bits are added to the VPC CIDR block bits. Example: /56 + 8 bits = /64 Defaults to 8 bits for a /64.

8
kms_key_arnstringoptional

The ARN of a KMS key to use for encrypting VPC the flow log. A new KMS key will be created if this is not supplied.

null

The number of days to retain this KMS Key (a Customer Master Key) after it has been marked for deletion. Setting to null defaults to the provider default, which is the maximum possible value (30 days).

null
kms_key_user_iam_arnslist(string)optional

VPC Flow Logs will be encrypted with a KMS Key (a Customer Master Key). The IAM Users specified in this list will have access to this key.

null

Specify true to indicate that instances launched into the public subnet should be assigned a public IP address (versus a private IP address)

false
nat_gateway_custom_tagsmap(string)optional

A map of tags to apply to the NAT gateways, on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}

The host number in the IP address of the NAT Gateway. You would only use this if you want the NAT Gateway to always have the same host number within your subnet's CIDR range: e.g., it's always x.x.x.4. For IPv4, this is the fourth octet in the IP address.

null

(Optional) The number of secondary private IP addresses to assign to each NAT gateway. These IP addresses are used for source NAT (SNAT) for the instances in the private subnets. Defaults to 0.

0

How many AWS Availability Zones (AZs) to use. One subnet of each type (public, private app) will be created in each AZ. Note that this must be less than or equal to the total number of AZs in a region. A value of null means all AZs should be used. For example, if you specify 3 in a region with 5 AZs, subnets will be created in just 3 AZs instead of all 5. Defaults to all AZs in a region.

null

If set to true, create one route table shared amongst all the public subnets; if set to false, create a separate route table per public subnet. Historically, we created one route table for all the public subnets, as they all routed through the Internet Gateway anyway, but in certain use cases (e.g., for use with Network Firewall), you may want to have separate route tables for each public subnet.

true
origin_vpc_cidr_blockstringoptional

The CIDR block of the origin VPC.

null
origin_vpc_idstringoptional

The ID of the origin VPC to use when creating peering connections and DNS forwarding.

null
origin_vpc_namestringoptional

The name of the origin VPC to use when creating peering connections and DNS forwarding.

null
origin_vpc_public_subnet_idslist(string)optional

The public subnets in the origin VPC to use when creating route53 resolvers. These are public subnets due to network ACLs restrictions. Although the forwarder is addressable publicly, access is blocked by security groups.

null

Name to set for the origin VPC resolver (outbound from origin VPC to destination VPC). If null (default), defaults to 'ORIGIN_VPC_NAME-to-DESTINATION_VPC_NAME-out'.

null
origin_vpc_route_table_idslist(string)optional

A list of route tables from the origin VPC that should have routes to this app VPC.

[]
persistence_propagating_vgwslist(string)optional

A list of Virtual Private Gateways that will propagate routes to persistence subnets. All routes from VPN connections that use Virtual Private Gateways listed here will appear in route tables of persistence subnets. If left empty, no routes will be propagated.

[]

Takes the CIDR prefix and adds these many bits to it for calculating subnet ranges. MAKE SURE if you change this you also change the CIDR spacing or you may hit errors. See cidrsubnet interpolation in terraform config for more information.

5

The amount of spacing between the private persistence subnets. Default: 2 times the value of private_subnet_spacing.

null

Set to false to prevent the private app subnet from allowing traffic from the transit subnet. Only used if create_transit_subnet_nacls is set to true.

true

A map of unique names to client IP CIDR block and inbound ports that should be exposed in the private app subnet tier nACLs. This is useful when exposing your service on a privileged port with an NLB, where the address isn't translated.

{}
Details

       A rule number indicating priority. A lower number has precedence. Note that the default rules created by this
       module start with 100.

Details

       Network protocol (tcp, udp, icmp, or all) to expose.

Details

       Range of ports to expose.

Details

       ICMP types to expose
       Required if specifying ICMP for the protocol

A map of unique names to destination IP CIDR block and outbound ports that should be allowed in the private app subnet tier nACLs. This is useful when allowing your VPC specific outbound communication to defined CIDR blocks(known networks)

{}
Details

       A rule number indicating priority. A lower number has precedence. Note that the default rules created by this
       module start with 100.

Details

       Network protocol (tcp, udp, icmp, or all) to expose.

Details

       Range of ports to expose.

Details

       ICMP types to expose
       Required if specifying ICMP for the protocol

A map of tags to apply to the private-app route table(s), on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}

A map listing the specific CIDR blocks desired for each private-app subnet. The key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of Availability Zones. If left blank, we will compute a reasonable CIDR block for each subnet.

{}

A map of tags to apply to the private-app Subnet, on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}

Set to false to prevent the private persistence subnet from allowing traffic from the transit subnet. Only used if create_transit_subnet_nacls is set to true.

true

A map of tags to apply to the private-persistence route tables(s), on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}

A map listing the specific CIDR blocks desired for each private-persistence subnet. The key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of Availability Zones. If left blank, we will compute a reasonable CIDR block for each subnet.

{}

A map of tags to apply to the private-persistence Subnet, on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}

The name of the private persistence subnet tier. This is used to tag the subnet and its resources.

"private-persistence"
private_propagating_vgwslist(string)optional

A list of Virtual Private Gateways that will propagate routes to private subnets. All routes from VPN connections that use Virtual Private Gateways listed here will appear in route tables of private subnets. If left empty, no routes will be propagated.

[]
private_subnet_bitsnumberoptional

Takes the CIDR prefix and adds these many bits to it for calculating subnet ranges. MAKE SURE if you change this you also change the CIDR spacing or you may hit errors. See cidrsubnet interpolation in terraform config for more information.

5
private_subnet_namestringoptional

The name of the private subnet tier. This is used to tag the subnet and its resources.

"private-app"

The amount of spacing between private app subnets. Defaults to subnet_spacing in vpc-app module if not set.

null
public_propagating_vgwslist(string)optional

A list of Virtual Private Gateways that will propagate routes to public subnets. All routes from VPN connections that use Virtual Private Gateways listed here will appear in route tables of public subnets. If left empty, no routes will be propagated.

[]

A map of tags to apply to the public route table(s), on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}
public_subnet_bitsnumberoptional

Takes the CIDR prefix and adds these many bits to it for calculating subnet ranges. MAKE SURE if you change this you also change the CIDR spacing or you may hit errors. See cidrsubnet interpolation in terraform config for more information.

5
public_subnet_cidr_blocksmap(string)optional

A map listing the specific CIDR blocks desired for each public subnet. The key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of Availability Zones. If left blank, we will compute a reasonable CIDR block for each subnet.

{}
public_subnet_custom_tagsmap(string)optional

A map of tags to apply to the public Subnet, on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}

(Optional) A map listing the specific IPv6 CIDR blocks desired for each public subnet. The key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of Availability Zones. If left blank, we will compute a reasonable CIDR block for each subnet.

{}
public_subnet_namestringoptional

The name of the public subnet tier. This is used to tag the subnet and its resources.

"public"

The timeout for the creation of the Route Tables. It defines how long to wait for a route table to be created before considering the operation failed. Ref: https://www.terraform.io/language/resources/syntax#operation-timeouts

"5m"

The timeout for the deletion of the Route Tables. It defines how long to wait for a route table to be deleted before considering the operation failed. Ref: https://www.terraform.io/language/resources/syntax#operation-timeouts

"5m"

The timeout for the update of the Route Tables. It defines how long to wait for a route table to be updated before considering the operation failed. Ref: https://www.terraform.io/language/resources/syntax#operation-timeouts

"2m"
s3_endpoint_policystringoptional

IAM policy to restrict what resources can call this endpoint. For example, you can add an IAM policy that allows EC2 instances to talk to this endpoint but no other types of resources. If not specified, all resources will be allowed to call this endpoint.

null
secondary_cidr_blocksset(string)optional

A list of secondary CIDR blocks to associate with the VPC.

[]
security_group_tagsmap(string)optional

A map of tags to apply to the default Security Group, on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}
subnet_spacingnumberoptional

The amount of spacing between the different subnet types

10

The VPC resources need special tags for discoverability by Kubernetes to use with certain features, like deploying ALBs.

false
tenancystringoptional

The allowed tenancy of instances launched into the selected VPC. Must be one of: default, dedicated, or host.

"default"
transit_propagating_vgwslist(string)optional

A list of Virtual Private Gateways that will propagate routes to transit subnets. All routes from VPN connections that use Virtual Private Gateways listed here will appear in route tables of transit subnets. If left empty, no routes will be propagated.

[]

A map of tags to apply to the transit route table(s), on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}
transit_subnet_bitsnumberoptional

Takes the CIDR prefix and adds these many bits to it for calculating subnet ranges. MAKE SURE if you change this you also change the CIDR spacing or you may hit errors. See cidrsubnet interpolation in terraform config for more information.

5
transit_subnet_cidr_blocksmap(string)optional

A map listing the specific CIDR blocks desired for each transit subnet. The key must be in the form AZ-0, AZ-1, ... AZ-n where n is the number of Availability Zones. If left blank, we will compute a reasonable CIDR block for each subnet.

{}
transit_subnet_custom_tagsmap(string)optional

A map of tags to apply to the transit Subnet, on top of the custom_tags. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}
transit_subnet_namestringoptional

The name of the transit subnet tier. This is used to tag the subnet and its resources.

"transit"

The amount of spacing between the transit subnets.

null

Set to true to use existing EIPs, passed in via custom_nat_eips, for the NAT gateway(s), instead of creating new ones.

false

When true, all IAM policies will be managed as dedicated policies rather than inline policies attached to the IAM roles. Dedicated managed policies are friendlier to automated policy checkers, which may scan a single resource for findings. As such, it is important to avoid inline policies when targeting compliance with various security standards.

true
vpc_custom_tagsmap(string)optional

A map of tags to apply just to the VPC itself, but not any of the other resources. The key is the tag name and the value is the tag value. Note that tags defined here will override tags defined as custom_tags in case of conflict.

{}
